Siemens 6AV2125-2JB03-0AX0
MPN6AV2125-2JB03-0AX0
Active

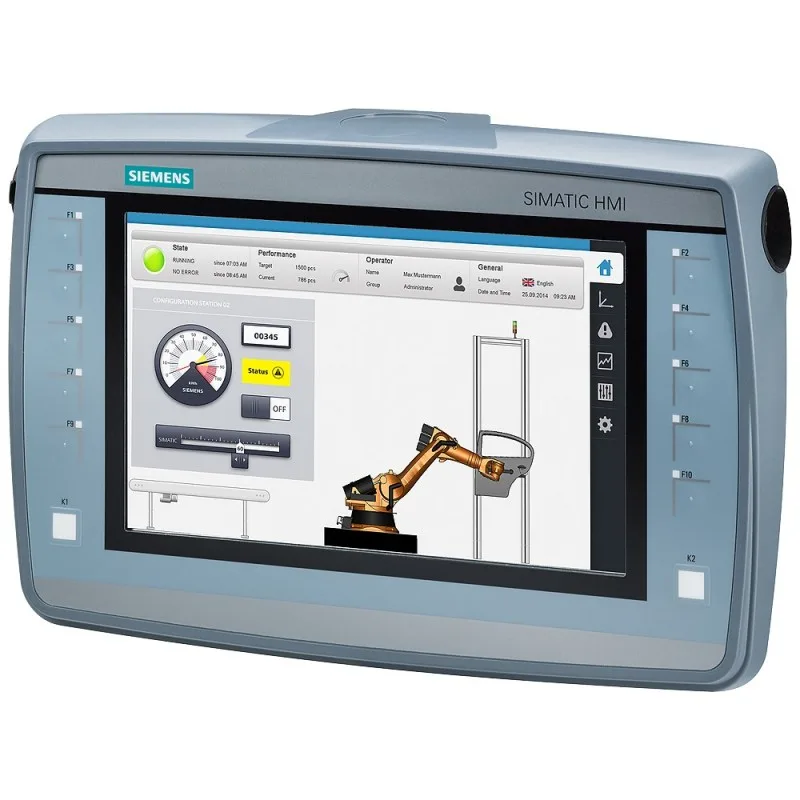

SIMATIC HMI KTP900 Mobile, 9.0" TFT display, 800x 480 pixel, 16 million colors. key and touch operation, 10 function keys, 1x PROFINET/Industrial Ethernet interface, 1x multimedia card, 1x USB, configurable from WinCC Comfort V13 SP1
$2,232.66 – $4,320.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 9 in |
| Display design | TFT widescreen display, LED backlighting |
| Touch screen | Yes |
| Number of display colors | 16 777 216 |
| Backlight MTBF (at 25 °C) | 50 000 h |
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes; Onscreen keyboard |
| Parameter | Value |
|---|---|
| Current consumption (rated) | 450 mA |
| Rated value (DC) | 24 V |
| Type of supply voltage | DC |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Parameter | Value |
|---|---|
| Front panel height | 200.9 mm |
| Front panel width | 307.5 mm |
| Weight (without packaging) | 1.5 kg |
| Parameter | Value |
|---|---|
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 % |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | Yes |
| RCM (formerly C-TICK) | Yes |
| ATEX Zone 2 | No |
| Marine approval: ABS | Yes |
| Marine approval: GL | Yes |
| Marine approval: DNV | Yes |
| Marine approval: LRS | Yes |
| Marine approval: BV | No; Available soon |
MPN
6AV2125-2JB03-0AX0
