Siemens 6AV2128-3GB06-0AX0
MPN6AV2128-3GB06-0AX0

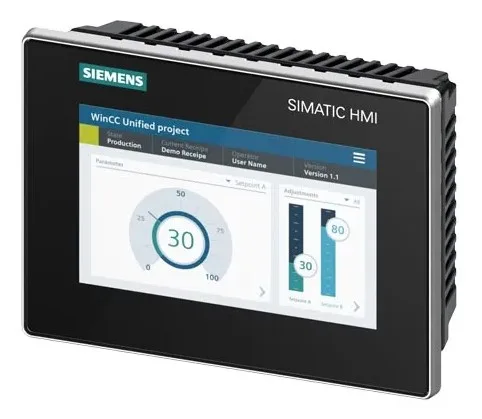

SIMATIC HMI MTP700, Unified Comfort Panel, touch operation, 7" widescreen TFT display, 16 million colors, PROFINET interface, configurable from WinCC Unified Comfort V16, contains open-source software, which is provided free of charge See enclosed Blu-Ray
$2,126.84Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Display
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 7 in |
| Display design | TFT |
| Touch screen | Yes |
| Number of display colors | 16 777 216 |
| Backlight MTBF (at 25 °C) | 50 000 h; At 25°C |
Communication & I/O
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes; Onscreen keyboard |
Electrical
| Parameter | Value |
|---|---|
| Current consumption (rated) | 0.45 A |
| Rated value (DC) | 24 V |
| Type of supply voltage | DC |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
Mechanical
| Parameter | Value |
|---|---|
| Mounting cutout height | 141 mm |
| Mounting cutout width | 197 mm |
| Portrait mounting possible | Yes |
| Overall depth | 64 mm |
| Front panel height | 158 mm |
| Front panel width | 214 mm |
| Weight (without packaging) | 1.4 kg |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 %; no condensation |
Approvals
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | Yes |
| RCM (formerly C-TICK) | Yes |
| ATEX Zone 2 | No; Available soon |
| Marine approval: ABS | No; Available soon |
| Marine approval: GL | No; Available soon |
| Marine approval: DNV | No; Available soon |
| Marine approval: LRS | No; Available soon |
| Marine approval: BV | No; Available soon |
MPN
6AV2128-3GB06-0AX0
