Siemens 6AV2144-8MC10-0AC0
MPN6AV2144-8MC10-0AC0
Active

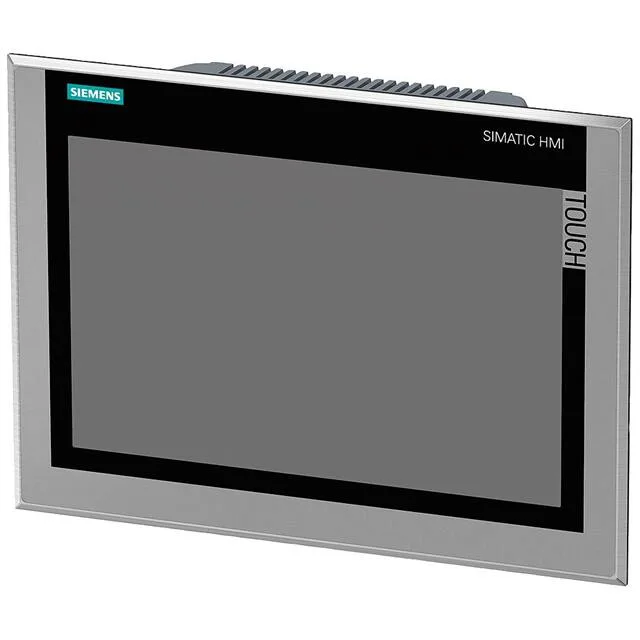

SIMATIC HMI TP1200 Comfort INOX Long stainless steel front, Continuous decorative film, Degree of protection front IP66K, 12" widescreen TFT display, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, (Microsoft Support included Security updates discontinued) configurable from WinCC Comfort V11
$2,127.25 – $4,730.04Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 12.1 in |
| Display design | TFT |
| Touch screen | Yes |
| Number of display colors | 16 777 216 |
| Backlight MTBF (at 25 °C) | 80 000 h |
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes; Onscreen keyboard |
| Parameter | Value |
|---|---|
| Current consumption (rated) | 0.85 A |
| Rated value (DC) | 24 V |
| Type of supply voltage | DC |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Parameter | Value |
|---|---|
| Mounting cutout height | 248 mm |
| Mounting cutout width | 310 mm |
| Portrait mounting possible | Yes |
| Overall depth | 67 mm |
| Front panel height | 269 mm |
| Front panel width | 330 mm |
| Weight (without packaging) | 4.2 kg |
| Parameter | Value |
|---|---|
| Ingress protection, front | IP66K |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 80 %; no condensation |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | Yes |
| RCM (formerly C-TICK) | No |
| ATEX Zone 2 | Yes |
| Marine approval: ABS | No |
| Marine approval: GL | No |
| Marine approval: DNV | No |
| Marine approval: LRS | No |
| Marine approval: BV | No |
