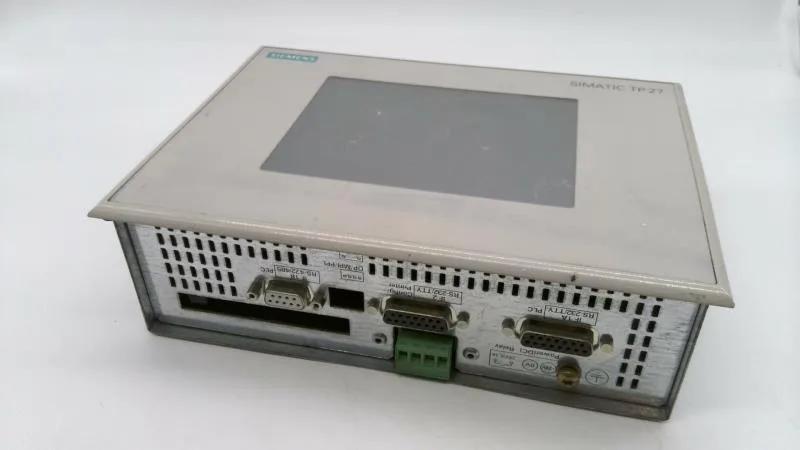

Siemens 6AV3627-1NK00-2AX0
MPN6AV3627-1NK00-2AX0
TOUCH PANEL TP27-6 6" STN MONOCHROME LC DISPLAY PCMCIA, 1 MB FLASH-EPROM
$1,123.57Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Display
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 5.7 in |
| Display technology | Hardware clock, battery backup, synchronizable |
| Display design | STN, 8 gray scales |
| Touch screen | Yes; Matrix, resistive |
| Backlight MTBF (at 25 °C) | 50 000 h |
Communication & I/O
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes |
Electrical
| Parameter | Value |
|---|---|
| Current consumption (rated) | 0.4 A |
| Type of supply voltage | 18 V DC |
Mechanical
| Parameter | Value |
|---|---|
| Overall depth | 65 mm |
| Front panel height | 156 mm |
| Front panel width | 212 mm |
| Weight (without packaging) | 1.5 kg |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 85 % |
MPN
6AV3627-1NK00-2AX0
