Siemens 6AV3637-1LL00-0AX1 — HMI Operator Interfaces

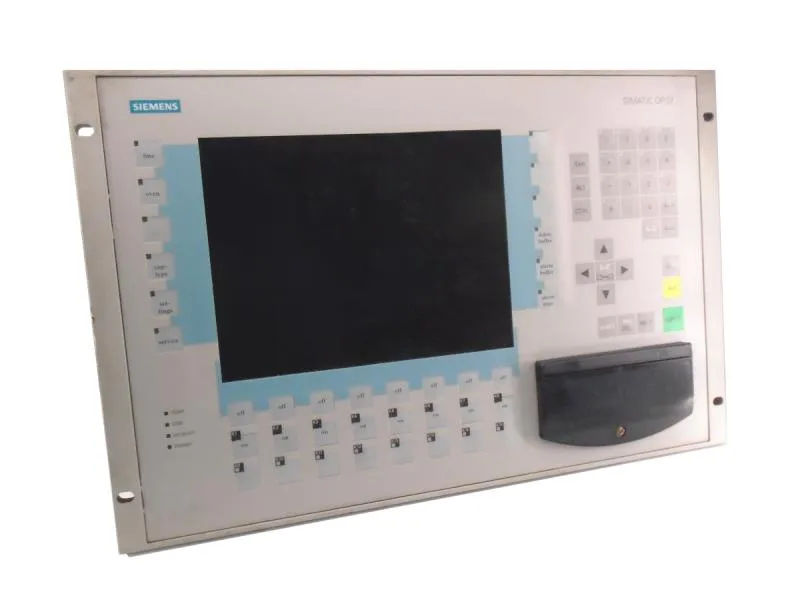

Siemens 6AV3637-1LL00-0AX1

MPN6AV3637-1LL00-0AX1

OPERATOR PANEL OP37 PENTIUM 100 MHZ, 8 MB RAM W. LC COLOR GRAPH.DISPLAY (STN) W/O HD, W/O FD

$1,525.91Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6AV3637-1LL00-0AX1 — Display
ParameterValue
Screen diagonal (size)10.4 in
Display technologyHardware clock, battery backup, synchronizable
Display designSTN, 8 colors
Touch screenNo
Backlight MTBF (at 25 °C)60 000 h
6AV3637-1LL00-0AX1 — Communication & I/O
ParameterValue
Alphanumeric keyboardYes
6AV3637-1LL00-0AX1 — Electrical
ParameterValue
Current consumption (rated)1.6 A
Type of supply voltage18 V DC
6AV3637-1LL00-0AX1 — Mechanical
ParameterValue
Overall depth85 mm
Front panel height310.3 mm
Front panel width482.6 mm
Weight (without packaging)8 kg
6AV3637-1LL00-0AX1 — Environmental
ParameterValue
Ingress protection, frontIP65
Ingress protection, rearIP20
Max.60 °C
Min.-20 °C
Relative humidity, operation, max.95 %
MPN
6AV3637-1LL00-0AX1
