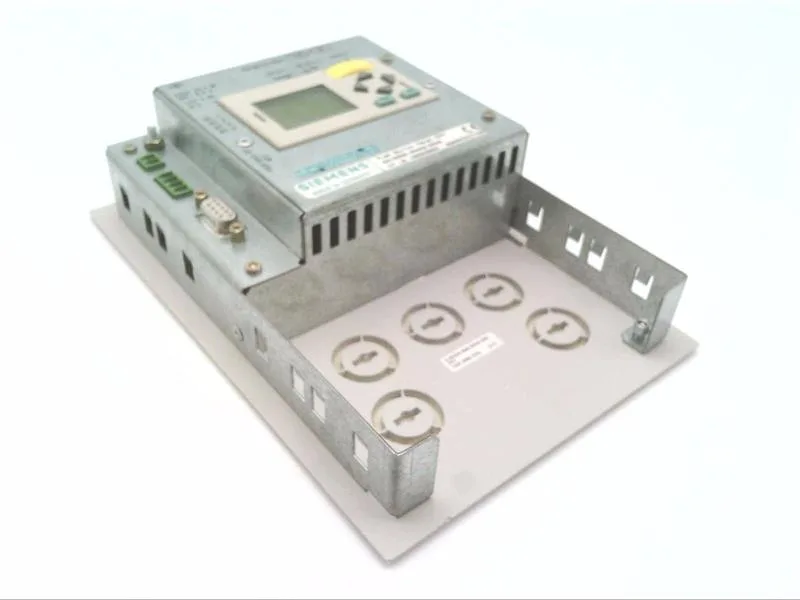

Siemens 6AV3688-3AA03-0AX0
MPN6AV3688-3AA03-0AX0
***Spare part*** Push Button Panel PP7 8 short-stroke keys, 8 surface LEDs, 4 DI terminals (24V) PROFIBUS DP
$638.37Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Type of supply voltage | DC |
| Permissible range, upper limit (DC) | 30 V |
| Permissible range, lower limit (DC) | 18 V |
| Parameter | Value |
|---|---|
| Mounting cutout height | 190 mm |
| Mounting cutout width | 130 mm |
| Portrait mounting possible | No |
| Overall depth | 53 mm |
| Front panel height | 204 mm |
| Front panel width | 144 mm |
| Mounting type | Clamp terminals |
| Weight (without packaging) | 720 g |
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 95 % |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | No |
| RCM (formerly C-TICK) | No |
| ATEX Zone 2 | No |
| Marine approval: ABS | No |
| Marine approval: GL | No |
| Marine approval: DNV | No |
| Marine approval: LRS | No |
| Marine approval: BV | No |
MPN
6AV3688-3AA03-0AX0
