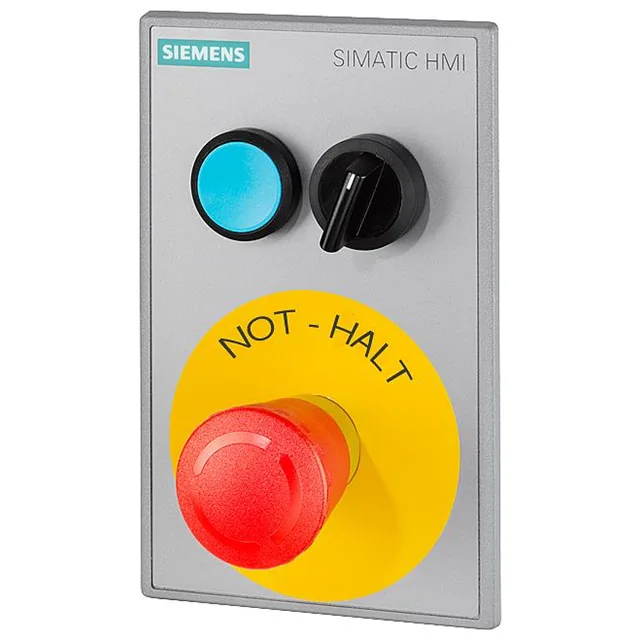

Siemens 6AV3688-3XY38-3AX0
MPN6AV3688-3XY38-3AX0
Active
design empty front in KP8 format for easy mounting of standard 22.5 mm operator controls Ideal for setting up modular operator panels also suitable for installation in extension units of the pro devices
$135.89 – $305.42Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting cutout height | 129 mm |
| Mounting cutout width | 68 mm; Max. thickness of mounting plate 2 - 6 mm |
| Portrait mounting possible | Yes |
| Overall depth | 49 mm |
| Front panel height | 155 mm |
| Front panel width | 98 mm |
| Mounting type | Clamp terminals |
| Weight (without packaging) | 240 g |
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 95 % |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | No |
| RCM (formerly C-TICK) | No |
| ATEX Zone 2 | No |
| Marine approval: ABS | No |
| Marine approval: GL | No |
| Marine approval: DNV | No |
| Marine approval: LRS | No |
| Marine approval: BV | No |
MPN
6AV3688-3XY38-3AX0
