Siemens 6AV3972-1XB00-0AA0
MPN6AV3972-1XB00-0AA0
BACKUP BATTERY 3V DC, 480 MAH BUTTON CELL FOR OP15A (6AV3515-1EB00), OP15A (6AV3515-1MA00), OP397 (6AV3515-1MA10)
$123.77Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Rated value (DC) | 3 V; 480 mAh |
| Type of supply voltage | DC |
| Parameter | Value |
|---|---|
| Height | 23 mm; Inner diameter |
| Width | 24.7 mm; Outer diameter |
| Parameter | Value |
|---|---|
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 % |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| Parameter | Value |
|---|---|
| Note: | NO LONGER AVAILABLE! No alternative solution possible! |
| Product 1 | 6AV3515-1EB00 |
| Product 2 | 6AV3515-1MA00 |
| Product 3 | 6AV3515-1MA10 |
| Thickness | 5.1 mm |

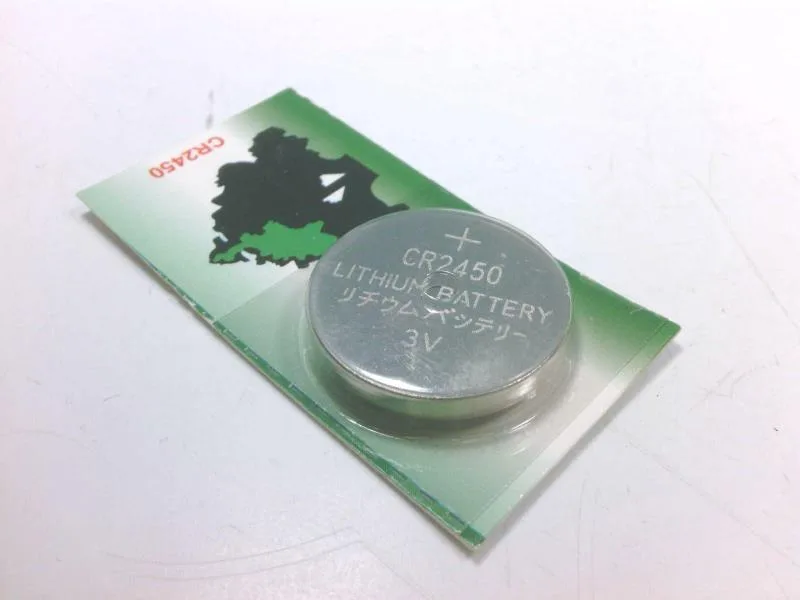

| Button cell | Yes; CR2450 (plus end 23 mm, minus end 24.7 mm) |
| Target devices | for OP15A - 6AV3515-1EB00, OP15A - 6AV3515-1MA00, OP397 - 6AV3515-1MA10 |
| Weight without packaging | 5.7 g |
| Delivery quantity in pieces | 1 |
| Wall mounting (direct mounting) | Yes; in HMI devices, battery compartment |
MPN
6AV3972-1XB00-0AA0
