Siemens 6AV6545-0DA10-0AX0
MPN6AV6545-0DA10-0AX0

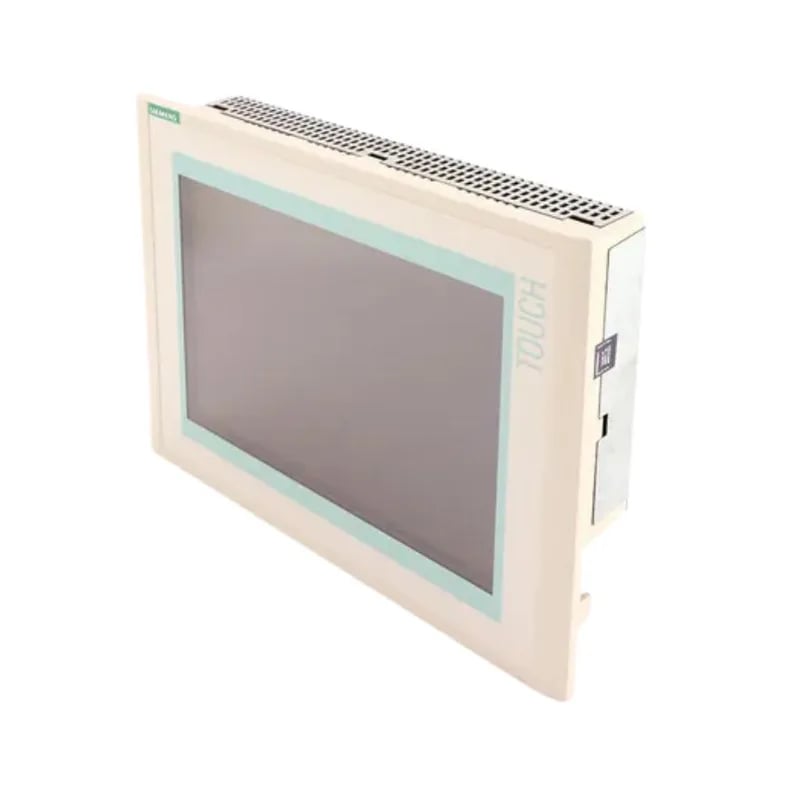

***Spare part*** SIMATIC Multi Panel MP 370 12" color TFT display, Touch Windows CE 3.0 configurable with ProTool From Version V5.2+SP3
$2,029.00 – $2,222.50Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 12.1 in |
| Display technology | Hardware clock, battery backup, synchronizable |
| Display design | TFT, 256 colors |
| Touch screen | Yes; analog, resistive |
| Backlight MTBF (at 25 °C) | 50 000 h |
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes |
| Parameter | Value |
|---|---|
| Current consumption (rated) | 1.15 A |
| Type of supply voltage | DC |
| Parameter | Value |
|---|---|
| Overall depth | 59 mm |
| Front panel height | 275 mm |
| Front panel width | 335 mm |
| Weight (without packaging) | 4.5 kg |
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 85 % |
MPN
6AV6545-0DA10-0AX0
