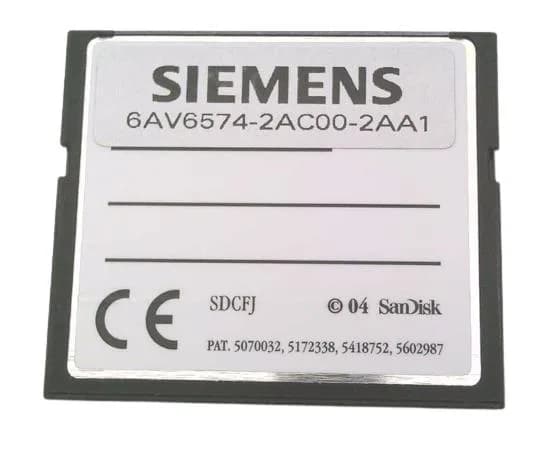

Siemens 6AV6574-2AC00-2AA1
MPN6AV6574-2AC00-2AA1
Active
SIMATIC HMI CF memory card, 512 MB, for for HMI devices and IPCs with corresponding slot Further information, Quantity and content: see technical data
$81.28 – $167.98Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
How we verify every order →Specifications
Electrical
| Parameter | Value |
|---|---|
| Current consumption (rated) | 75 mA; Typical, maximum value |
| Rated value (DC) | 3.3 V; Selectable power supply: 3.3 V ±10% or 5.0 V ±10% |
| Type of supply voltage | DC |
Mechanical
| Parameter | Value |
|---|---|
| Portrait mounting possible | Yes |
| Height | 36.4 mm |
| Width | 42.8 mm |
| Weight (without packaging) | 10 g |
Environmental
| Parameter | Value |
|---|---|
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 % |
Approvals
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | No |
| ATEX Zone 2 | Yes; Always comply with the operating instructions of the target device. |
| Marine approval: ABS | Yes; Always comply with the operating instructions of the target device. |
| Marine approval: GL | Yes; Always comply with the operating instructions of the target device. |
| Marine approval: DNV | Yes; Always comply with the operating instructions of the target device. |
| Marine approval: LRS | Yes; Always comply with the operating instructions of the target device. |
| Marine approval: BV | Yes; Always comply with the operating instructions of the target device. |
MPN
6AV6574-2AC00-2AA1
