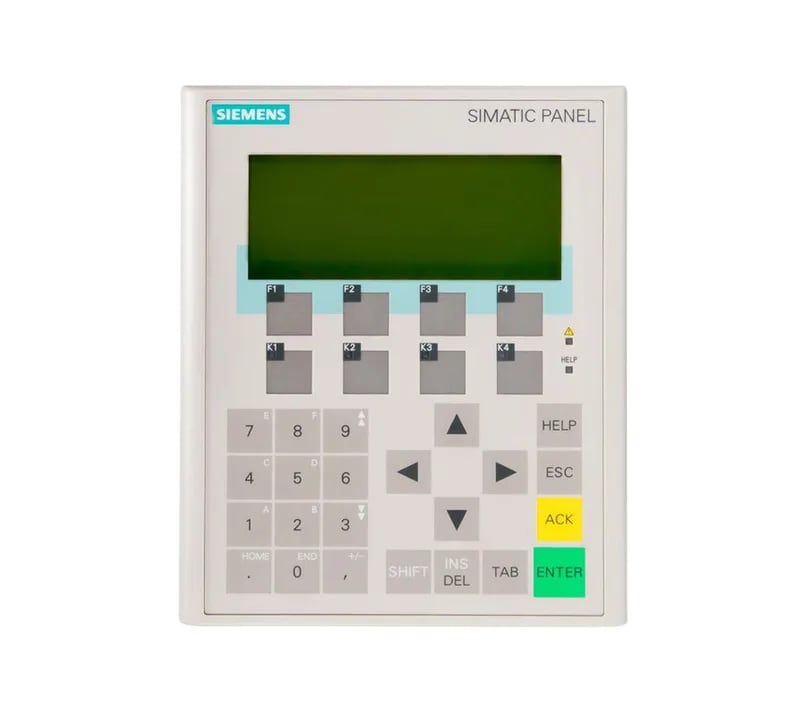

Siemens 6AV6641-0CA01-0AX0
MPN6AV6641-0CA01-0AX0
*** SPARE PART*** SIMATIC OPERATOR PANEL OP77B BACKLIT LC DISPLAY, 4.5" DISPL. W. GRAPHICS CAPABIL MPI-/PROFIBUS-DP INTERFACE UPTO 12 MB, PRINTER/USB INTERFACE, SLOT FOR MMC CARD, FOR CONFIGURATION OF WINCC FLEXIBLE 2004 COMPACT
$698.50 – $1,753.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
How we verify every order →Specifications
Display
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 4.5 in |
| Display technology | Software clock, no battery backup |
| Display design | STN |
| Number of display colors | 2; Black/white |
| Backlight MTBF (at 25 °C) | 100 000 h |
Communication & I/O
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes |
Electrical
| Parameter | Value |
|---|---|
| Current consumption (rated) | 0.2 A |
Mechanical
| Parameter | Value |
|---|---|
| Overall depth | 38.5 mm |
| Front panel height | 186 mm |
| Front panel width | 150 mm |
| Weight (without packaging) | 0.5 kg |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 % |
Approvals
| Parameter | Value |
|---|---|
| cULus listed | Yes |
| ATEX Zone 2 | Yes |
| Marine approval: ABS | Yes |
| Marine approval: GL | Yes |
| Marine approval: DNV | Yes |
| Marine approval: LRS | Yes |
| Marine approval: BV | Yes |
MPN
6AV6641-0CA01-0AX0
