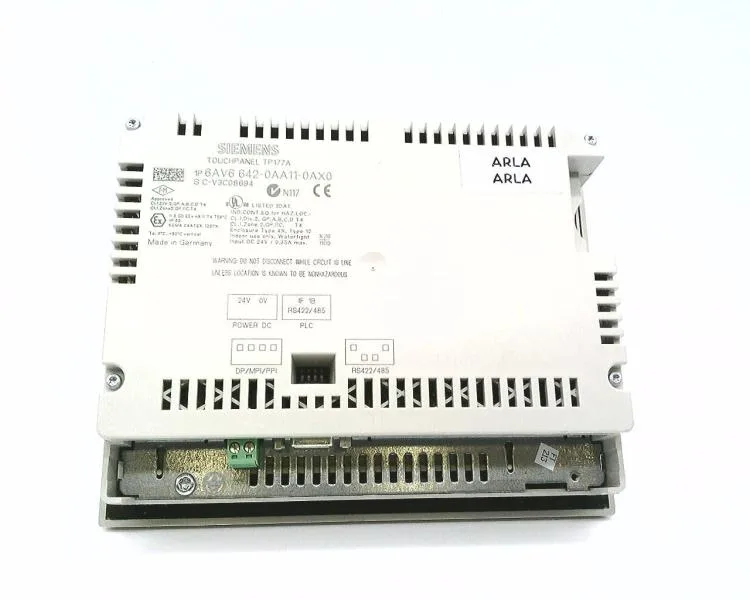

Siemens 6AV6642-0AA11-0AX0
MPN6AV6642-0AA11-0AX0
*** SPARE PART*** SIMATIC TOUCH PANEL TP 177A 5,7" BLUE MODE STN-DISPLAY, MPI/PROFIBUS-DP INTERFACE, CONFIGURABLE WINCC FLEXIBLE 2004 COMPACT HSP UPWARDS; CONTAINS OPEN-SOURCE-SW, WHICH IS PROVIDED FREE OF CHARGE. FOR DETAILS SEE ENCLOSED CD
$889.00 – $947.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Display
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 5.7 in |
| Display technology | Software clock, no battery backup |
| Display design | STN |
| Touch screen | Yes; analog, resistive |
| Number of display colors | 2; Blue levels |
| Backlight MTBF (at 25 °C) | 50 000 h |
Communication & I/O
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes |
Electrical
| Parameter | Value |
|---|---|
| Current consumption (rated) | 0.24 A |
Mechanical
| Parameter | Value |
|---|---|
| Overall depth | 45 mm |
| Front panel height | 156 mm |
| Front panel width | 212 mm |
| Weight (without packaging) | 0.75 kg |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 % |
Approvals
| Parameter | Value |
|---|---|
| cULus listed | Yes |
| ATEX Zone 2 | No |
| Marine approval: ABS | Yes |
| Marine approval: GL | Yes |
| Marine approval: DNV | Yes |
| Marine approval: LRS | Yes |
| Marine approval: BV | Yes |
MPN
6AV6642-0AA11-0AX0
