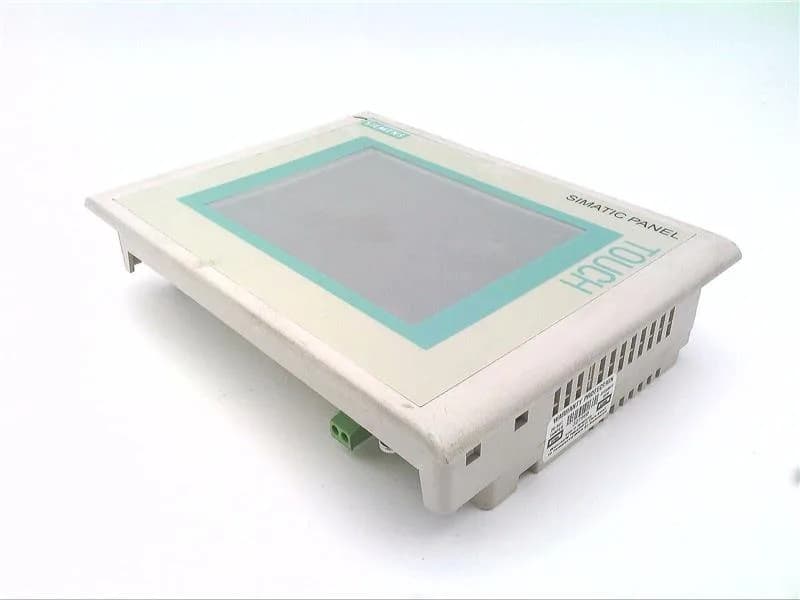

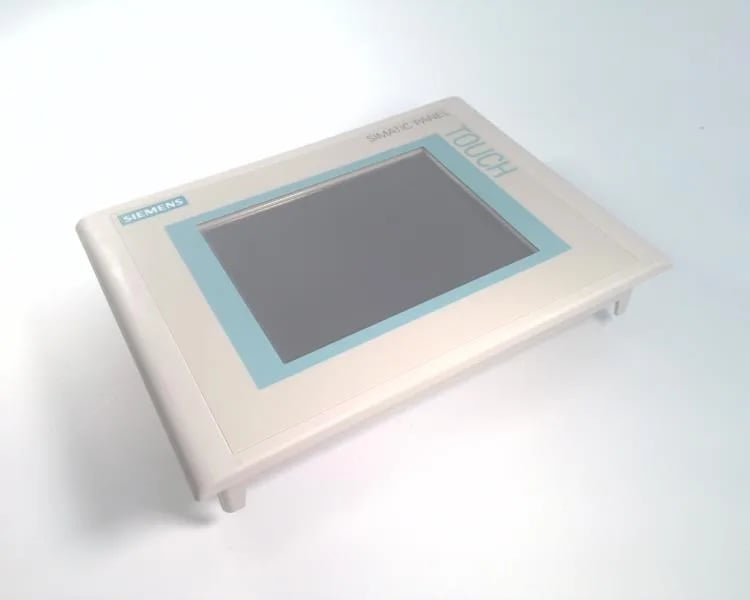

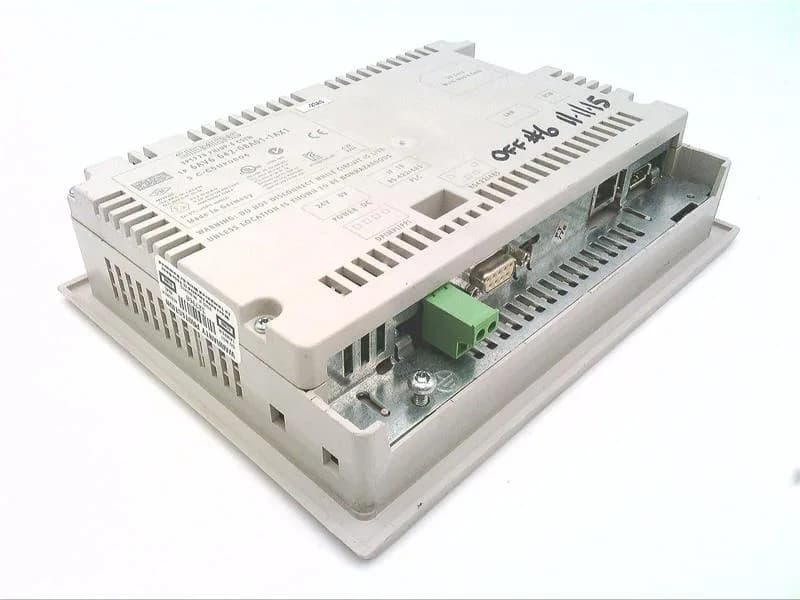

Siemens 6AV6642-0BA01-1AX1 — HMI Operator Interfaces

Siemens 6AV6642-0BA01-1AX1

MPN6AV6642-0BA01-1AX1

*** spare part *** SIMATIC TP 177B 6" PN/DP STN 256 color display MPI/PROFIBUS DP protocol RS485/RS422/USB interface Ethernet 10/100 interface printer interface slot for MMC configurable with WinCC flexible 2005

$904.88 – $1,352.00Ref. price · indicative, final on quote
Siemens 6AV6642-0BA01-1AX1 datasheet (PDF)
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Display

6AV6642-0BA01-1AX1 — Display
ParameterValue
Screen diagonal (size)5.7 in
Display technologyHardware clock, synchronizable, no battery backup
Display designSTN
Touch screenYes; analog, resistive
Number of display colors256
Backlight MTBF (at 25 °C)50 000 h

Communication & I/O

6AV6642-0BA01-1AX1 — Communication & I/O
ParameterValue
Alphanumeric keyboardYes

Electrical

6AV6642-0BA01-1AX1 — Electrical
ParameterValue
Current consumption (rated)0.24 A
Type of supply voltageDC

Mechanical

6AV6642-0BA01-1AX1 — Mechanical
ParameterValue
Mounting cutout height142 mm
Mounting cutout width198 mm
Overall depth44 mm
Front panel height156 mm
Front panel width212 mm
Weight (without packaging)0.8 kg

Environmental

6AV6642-0BA01-1AX1 — Environmental
ParameterValue
Ingress protection, frontIP65
Ingress protection, rearIP20
Max.60 °C
Min.-20 °C
Relative humidity, operation, max.90 %

Approvals

6AV6642-0BA01-1AX1 — Approvals
ParameterValue
CE markYes
cULus listedYes
ATEX Zone 2No; certificate no longer available as of 1 October 2020
Marine approval: ABSYes; only valid up to and including the HW release (see MLFB release notes in SIOS)!
Marine approval: GLYes; only valid up to and including the HW release (see MLFB release notes in SIOS)!
Marine approval: DNVYes; only valid up to and including the HW release (see MLFB release notes in SIOS)!
Marine approval: LRSYes; only valid up to and including the HW release (see MLFB release notes in SIOS)!
Marine approval: BVYes; only valid up to and including the HW release (see MLFB release notes in SIOS)!
MPN
6AV6642-0BA01-1AX1
