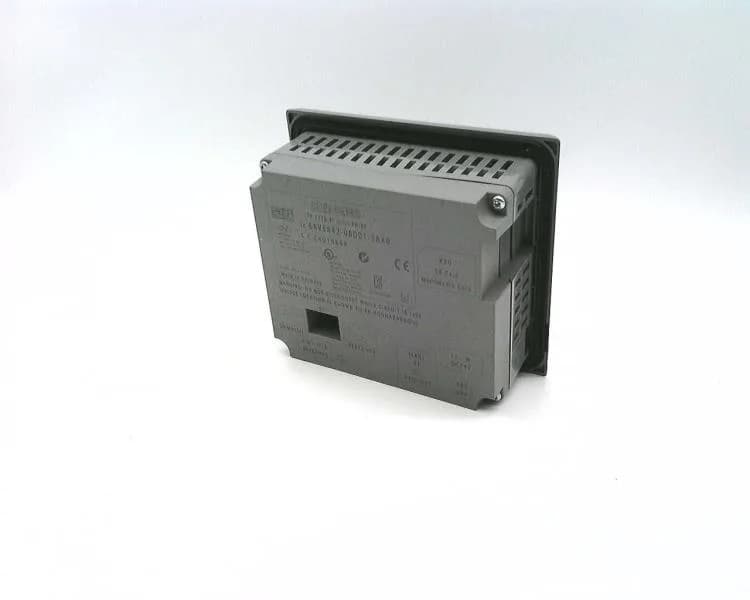

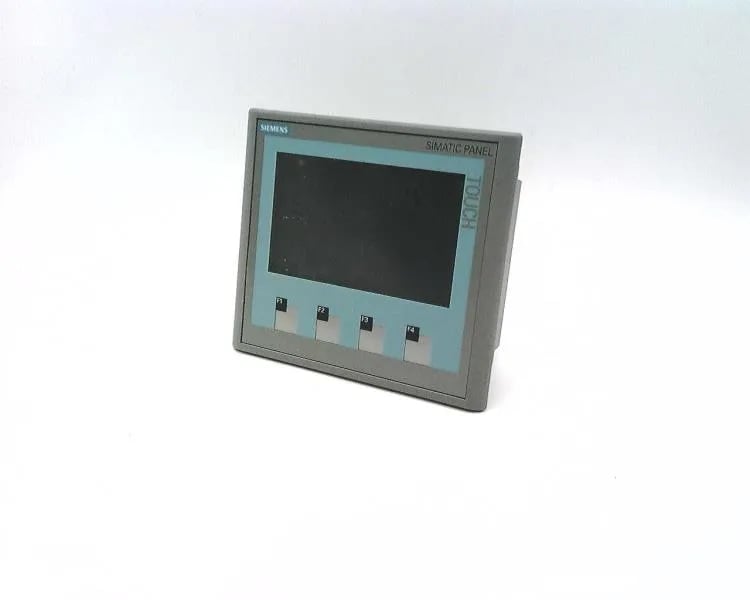

Siemens 6AV6642-0BD01-3AX0
MPN6AV6642-0BD01-3AX0
The new part, as of 01.01.2015, is blocked for delivery. Spare part can continue to be purchased as required, but price may deviate from new part. Further information under SIMATIC current entry ID: 109486162. For questions, the familiar contact persons are available to you. SIMATIC TP 177B 4" Color PN/DP TFT 256 Color-16: 9-display, MPI/PROFIBUS DP protocol RS 485/RS 422/USB interface Ethernet 10/100 interface Printer interface Slot for MMC configurable with WinCC flexible 2008
$971.55 – $1,822.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 4.3 in |
| Display technology | Hardware clock, synchronizable, no battery backup |
| Display design | TFT |
| Touch screen | Yes; analog, resistive |
| Number of display colors | 256 |
| Backlight MTBF (at 25 °C) | 30 000 h |
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes; Onscreen keyboard |
| Parameter | Value |
|---|---|
| Current consumption (rated) | 0.2 A |
| Type of supply voltage | DC |
| Parameter | Value |
|---|---|
| Mounting cutout height | 99 mm |
| Mounting cutout width | 123 mm |
| Overall depth | 48 mm |
| Front panel height | 116 mm |
| Front panel width | 140 mm |
| Weight (without packaging) | 0.5 kg; max. |
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 % |
| Parameter | Value |
|---|---|
| cULus listed | Yes |
| ATEX Zone 2 | No |
| Marine approval: ABS | No |
| Marine approval: GL | Yes |
| Marine approval: DNV | No |
| Marine approval: LRS | No |
| Marine approval: BV | No |
MPN
6AV6642-0BD01-3AX0
