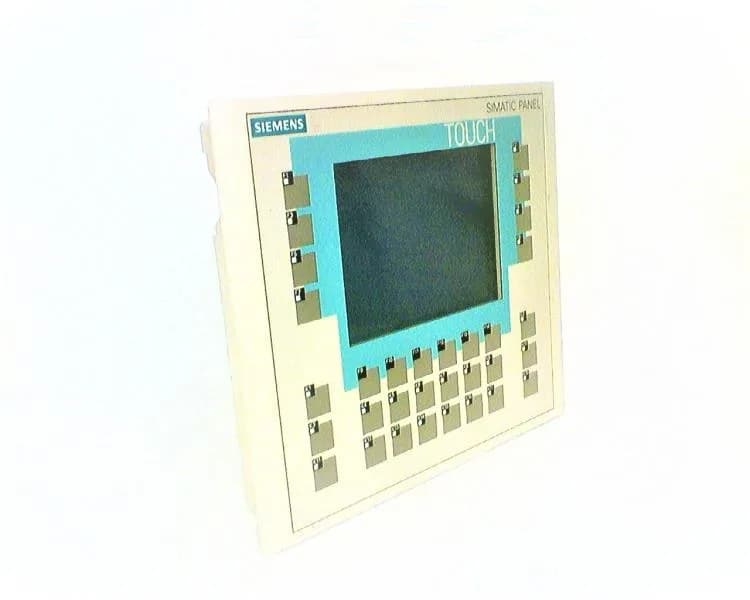

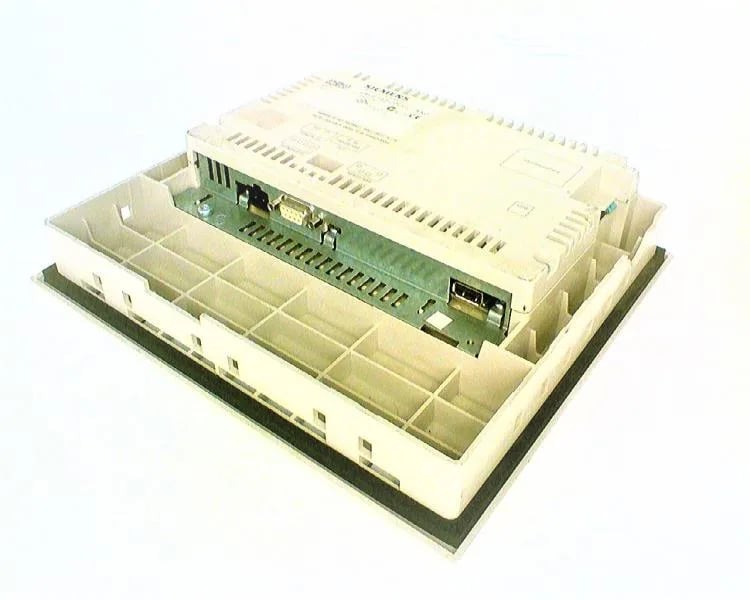

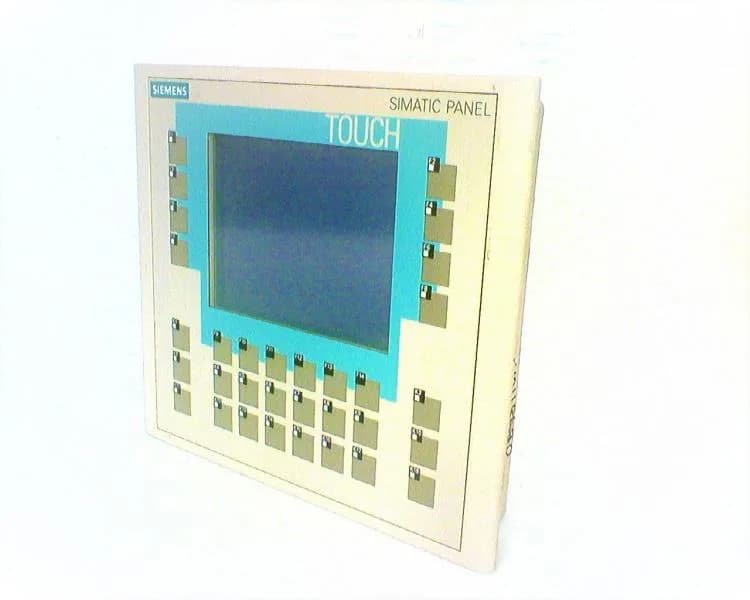

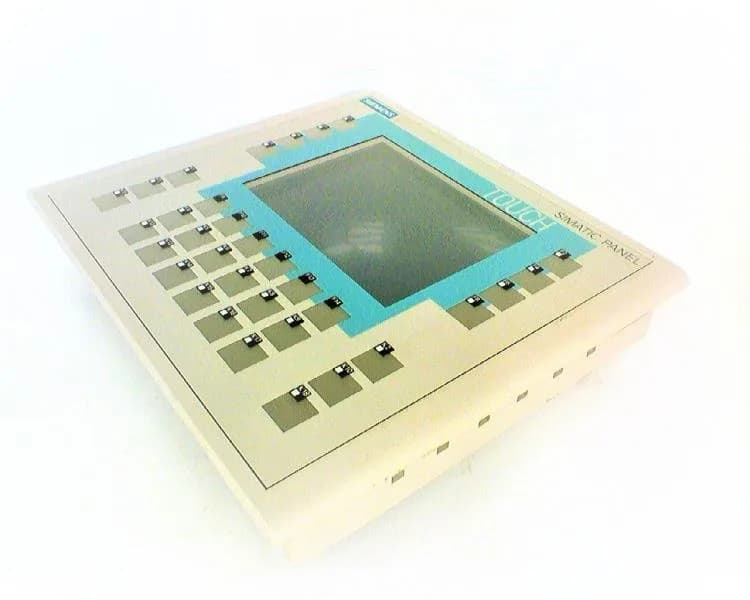

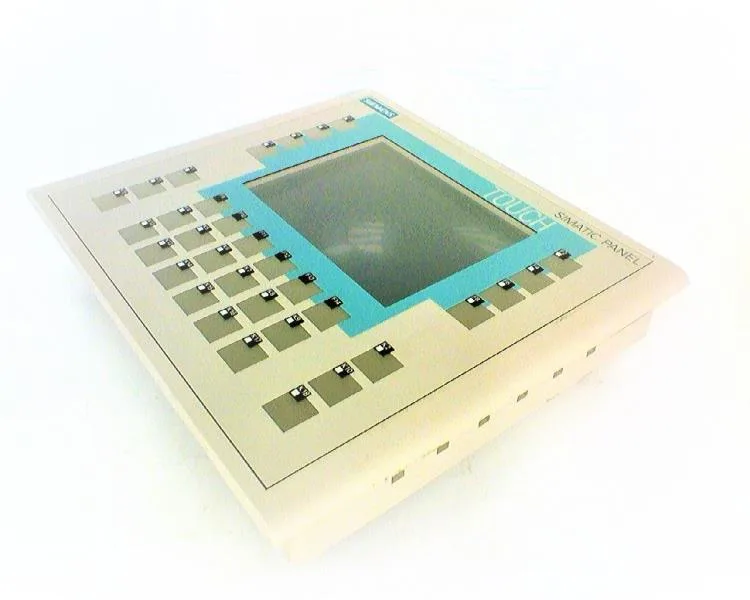

Siemens 6AV6642-0DC01-1AX0
MPN6AV6642-0DC01-1AX0
*** SPARE PART*** SIMATIC PANEL OP177B DP BLUE MODE STN DISPLAY TOUCH AND KEYS MPI-/PROFIBUS-DP PROTOCOL RS485-/RS422-/USB- INTERFACE PRINTER INTERFACE SLOT FOR MM-CARD CONFIGURABLE WITH WINCC FLEXIBLE 2005
$1,485.90Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 5.7 in |
| Display technology | Hardware clock, synchronizable, no battery backup |
| Display design | STN |
| Touch screen | Yes; analog, resistive |
| Number of display colors | 4; Blue levels |
| Backlight MTBF (at 25 °C) | 50 000 h |
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes |
| Parameter | Value |
|---|---|
| Overall depth | 45 mm |
| Front panel height | 212.5 mm |
| Front panel width | 243 mm |
| Weight (without packaging) | 1 kg |
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 % |
| Parameter | Value |
|---|---|
| cULus listed | Yes |
| ATEX Zone 2 | Yes |
| Marine approval: ABS | Yes |
| Marine approval: GL | Yes |
| Marine approval: DNV | Yes |
| Marine approval: LRS | Yes |
| Marine approval: BV | Yes |
MPN
6AV6642-0DC01-1AX0
