Siemens 6AV6643-0AA01-1AX0
MPN6AV6643-0AA01-1AX0

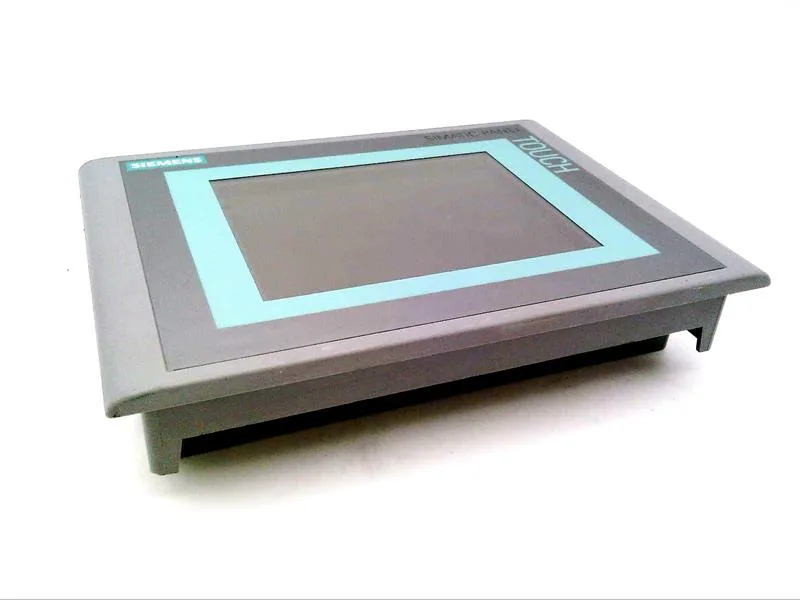

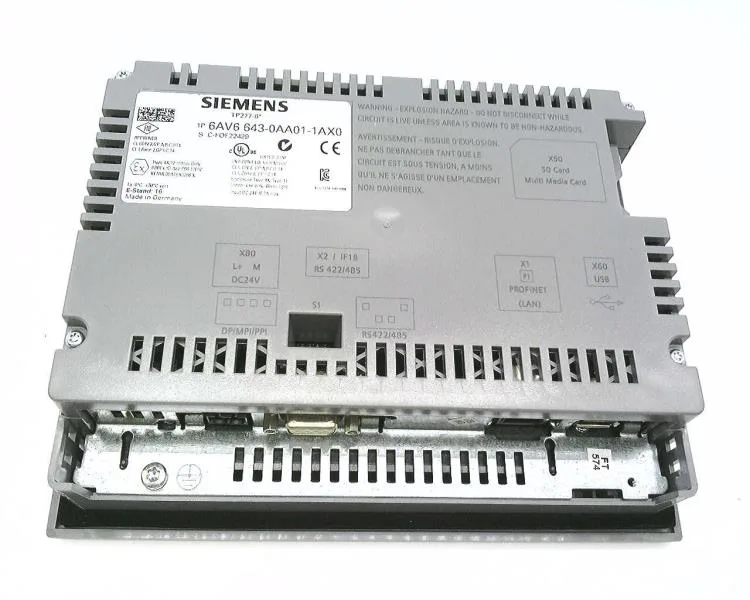

*** spare part *** SIMATIC TP 277 6" touch panel 5.7" TFT display 4 MB configuration memory, configurable with WinCC flexible 2005 Standard
$1,166.00 – $1,257.30Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Display
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 5.7 in |
| Display technology | Software clock, synchronizable, no battery backup |
| Display design | TFT |
| Touch screen | Yes; analog, resistive |
| Number of display colors | 256 |
| Backlight MTBF (at 25 °C) | 60 000 h |
Communication & I/O
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes |
Electrical
| Parameter | Value |
|---|---|
| Type of supply voltage | DC |
Mechanical
| Parameter | Value |
|---|---|
| Mounting cutout height | 141 mm |
| Mounting cutout width | 197 mm |
| Overall depth | 45 mm |
| Front panel height | 156 mm |
| Front panel width | 212 mm |
| Weight (without packaging) | 0.78 kg |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 80 % |
Approvals
| Parameter | Value |
|---|---|
| CE mark | Yes |
| ATEX Zone 2 | No; certificate no longer available as of 1 October 2020 |
MPN
6AV6643-0AA01-1AX0
