Siemens 6AV6643-0CB01-1AX2
MPN6AV6643-0CB01-1AX2

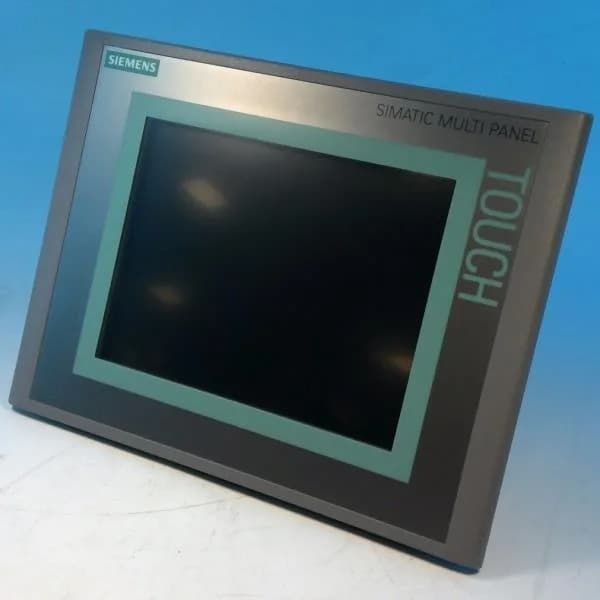

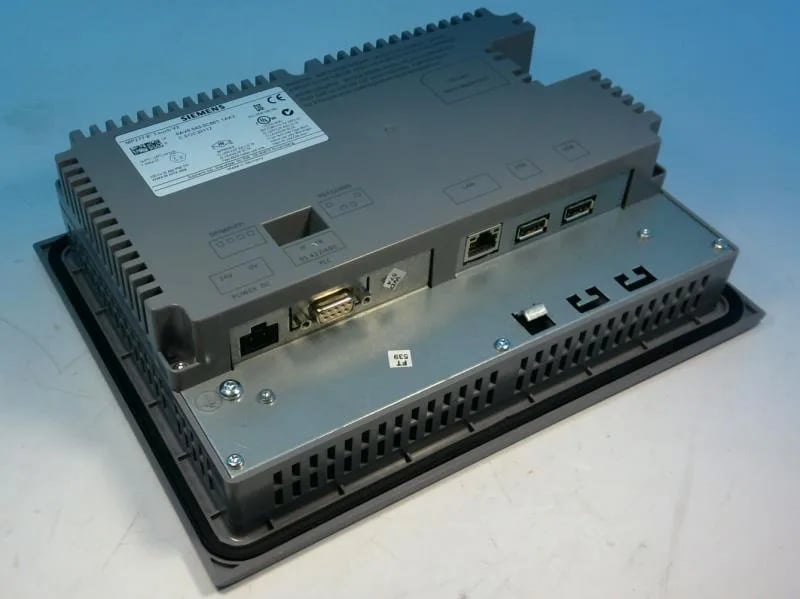

The new part, as of 01.01.2015, is blocked for delivery. Spare part can continue to be purchased as required, but price may deviate from new part. Further information under SIMATIC current entry ID: 109486162. For questions, the familiar contact persons are available to you. SIMATIC MP 277 8" Touch Multi Panel with retentive memory 7.5" TFT display 6 MB configuration memory, configurable with WinCC flexible 2008 Standard SP3 Update 5 WinCC Comfort V13 HSP
$3,086.10Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
Display
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 7.5 in |
| Display technology | Hardware clock, battery backup, synchronizable |
| Display design | TFT |
| Touch screen | Yes; analog, resistive |
| Number of display colors | 65 536 |
| Backlight MTBF (at 25 °C) | 50 000 h |
Communication & I/O
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes |
Electrical
| Parameter | Value |
|---|---|
| Type of supply voltage | DC |
Mechanical
| Parameter | Value |
|---|---|
| Mounting cutout height | 166 mm |
| Mounting cutout width | 226 mm |
| Overall depth | 61 mm |
| Front panel height | 190 mm |
| Front panel width | 250 mm |
| Weight (without packaging) | 1.61 kg |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 % |
Approvals
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | Yes |
| ATEX Zone 2 | No; certificate no longer available as of 1 October 2020 |
MPN
6AV6643-0CB01-1AX2
