Siemens 6AV6643-0CD01-1AX0
MPN6AV6643-0CD01-1AX0

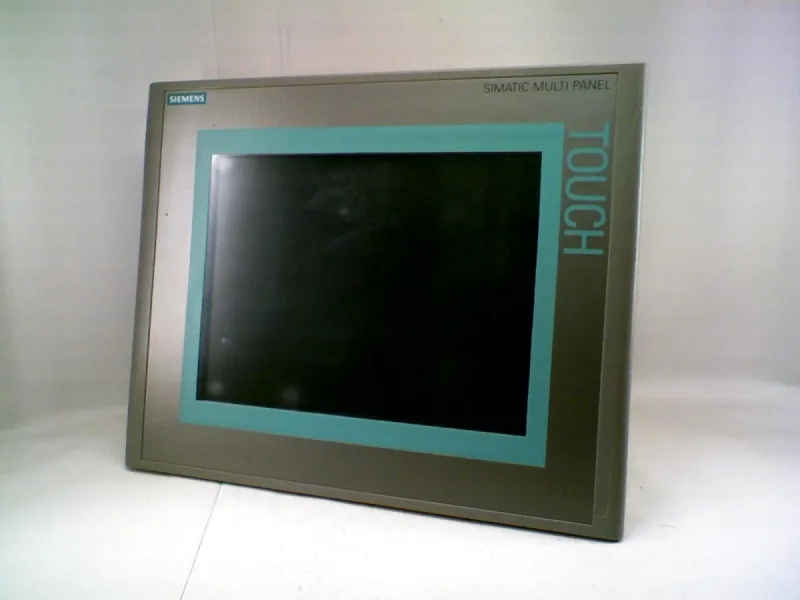

*** SPARE PART*** SIMATIC MP 277 10" TOUCH MULTI PANEL 10,4" TFT DISPLAY 6 MB USER MEMORY CONFIG: WINCC FLEXIBLE 2005 STANDARD SP1
$1,690.00 – $2,537.46Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 10.4 in |
| Display technology | Hardware clock, battery backup, synchronizable |
| Display design | TFT |
| Touch screen | Yes; analog, resistive |
| Number of display colors | 65 536 |
| Backlight MTBF (at 25 °C) | 50 000 h |
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes |
| Parameter | Value |
|---|---|
| Mounting cutout height | 248 mm |
| Mounting cutout width | 310 mm |
| Overall depth | 61 mm |
| Front panel height | 263 mm |
| Front panel width | 325 mm |
| Weight (without packaging) | 2.65 kg |
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 80 % |
MPN
6AV6643-0CD01-1AX0
