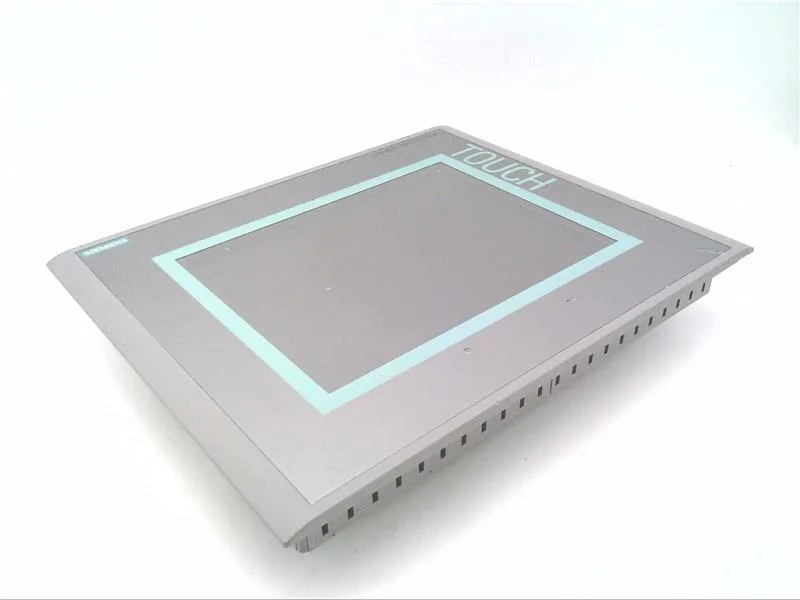

Siemens 6AV6643-0CD01-1AX2
MPN6AV6643-0CD01-1AX2
NRND
The new part, as of 01.01.2015, is blocked for delivery. Spare part can continue to be purchased as required, but price may deviate from new part. Further information under SIMATIC current entry ID: 109486162. For questions, the familiar contact persons are available to you. SIMATIC MP 277 10" Touch Multi Panel with retentive memory 10.4" TFT display 6 MB configuration memory configurable with WinCC flexible 2008 Standard SP3 Update 5 WinCC Comfort V13 HSP
$1,166.00 – $2,686.05Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Display
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 10.4 in |
| Display technology | Hardware clock, battery backup, synchronizable |
| Display design | TFT |
| Touch screen | Yes; analog, resistive |
| Number of display colors | 65 536 |
| Backlight MTBF (at 25 °C) | 50 000 h |
Communication & I/O
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes |
Electrical
| Parameter | Value |
|---|---|
| Type of supply voltage | DC |
Mechanical
| Parameter | Value |
|---|---|
| Mounting cutout height | 248 mm |
| Mounting cutout width | 310 mm |
| Overall depth | 61 mm |
| Front panel height | 275 mm |
| Front panel width | 335 mm |
| Weight (without packaging) | 2.65 kg |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 % |
Approvals
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | Yes |
| ATEX Zone 2 | No; certificate no longer available as of 1 October 2020 |
MPN
6AV6643-0CD01-1AX2
