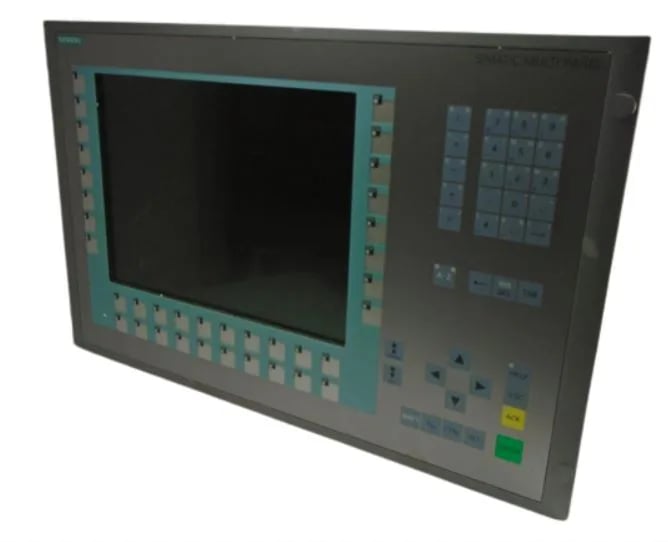

Siemens 6AV6644-0BA01-2AX0
MPN6AV6644-0BA01-2AX0
*** SPARE PART*** SIMATIC MP 377 12" KEY MULTIPANEL, WINDOWS CE 5.0 12" COLOR-TFT-DISPLAY 12 MB USER MEMORY CONFIGURABLE FROM WINCC FLEXIBLE 2007
$12,744.70Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
Display
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 12.1 in |
| Display technology | Hardware clock, battery backup, synchronizable |
| Display design | TFT |
| Number of display colors | 65 536 |
| Backlight MTBF (at 25 °C) | 50 000 h |
Communication & I/O
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes |
Electrical
| Parameter | Value |
|---|---|
| Current consumption (rated) | 1.5 A |
Mechanical
| Parameter | Value |
|---|---|
| Mounting cutout height | 290 mm |
| Mounting cutout width | 450 mm |
| Overall depth | 59 mm |
| Front panel height | 310 mm |
| Front panel width | 483 mm |
| Weight (without packaging) | 5.5 kg |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 % |
Approvals
| Parameter | Value |
|---|---|
| cULus listed | Yes |
MPN
6AV6644-0BA01-2AX0
