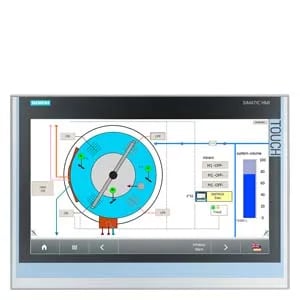

Siemens 6AV6646-1AC22-0AX0
MPN6AV6646-1AC22-0AX0
*** spare part *** SIMATIC ITC 1900, Industrial Thin Client, 19" widescreen TFT display, touch operation, supported protocols: RDP, VNC, SmartServer, web
$2,440.31Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 18.5 in; 19" |
| Display design | TFT widescreen display, LED backlighting |
| Touch screen | Yes |
| Number of display colors | 16 777 216 |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Type of supply voltage | DC |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Parameter | Value |
|---|---|
| Mounting cutout height | 319 mm |
| Mounting cutout width | 465 mm |
| Overall depth | 75 mm |
| Front panel height | 337 mm |
| Front panel width | 483 mm |
| Weight (without packaging) | 6.5 kg |
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 % |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | Yes |
| RCM (formerly C-TICK) | Yes |
MPN
6AV6646-1AC22-0AX0
