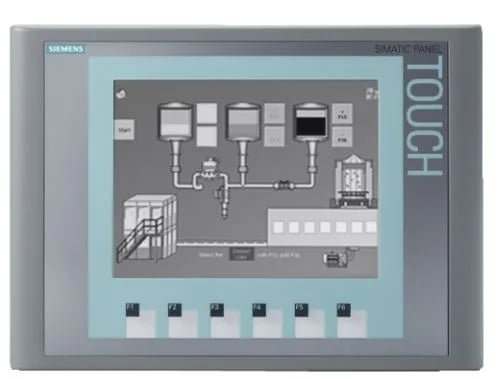

Siemens 6AV6647-0AB11-3AX1
MPN6AV6647-0AB11-3AX1
SIMATIC HMI KTP600 Basic mono PN, Basic Panel, key/touch operation, 6" STN display, 4 gray levels, PROFINET interface, configurable as of WinCC flexible 2008 SP2 Compact/ WinCC Basic V10.5/ STEP 7 Basic V10.5, contains open-source software, which is provided free of charge see enclosed CD
$2,490.76Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
Display
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 5.7 in |
| Display design | STN |
| Touch screen | Yes; Analog-resistive |
| Number of display colors | 4; Grayscales |
| Backlight MTBF (at 25 °C) | 50 000 h |
Communication & I/O
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes; Onscreen keyboard |
Electrical
| Parameter | Value |
|---|---|
| Current consumption (rated) | 0.24 A |
| Rated value (DC) | 24 V |
| Type of supply voltage | DC |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
Mechanical
| Parameter | Value |
|---|---|
| Mounting cutout height | 141 mm |
| Mounting cutout width | 197 mm |
| Portrait mounting possible | Yes |
| Overall depth | 44 mm |
| Front panel height | 158 mm |
| Front panel width | 214 mm |
| Weight (without packaging) | 1.07 kg |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 %; no condensation |
Approvals
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | Yes |
| RCM (formerly C-TICK) | Yes |
| ATEX Zone 2 | No; valid only when stated on the device nameplate! |
| Marine approval: ABS | No |
| Marine approval: GL | No |
| Marine approval: DNV | No |
| Marine approval: LRS | No |
| Marine approval: BV | No |
MPN
6AV6647-0AB11-3AX1
