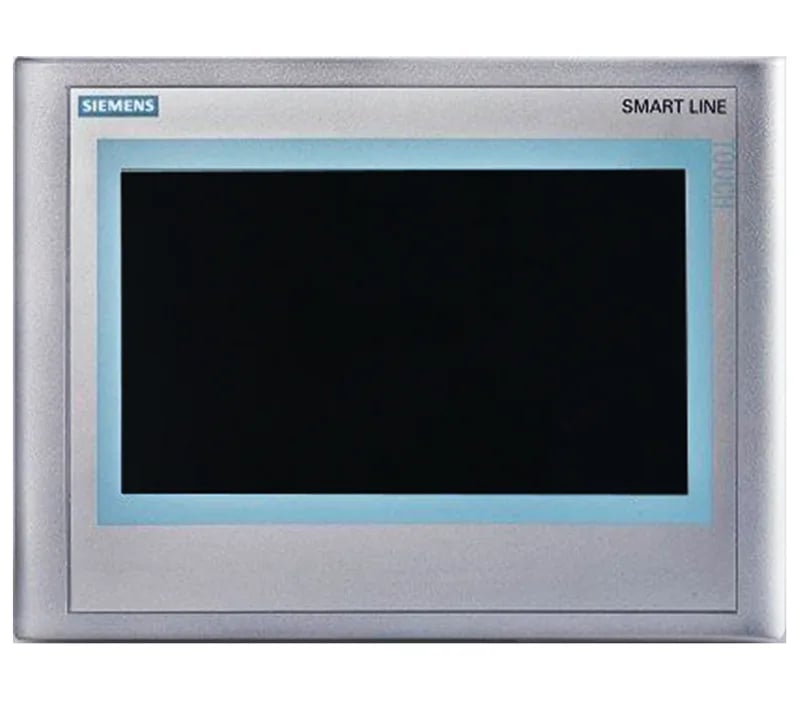

Siemens 6AV6648-0AC11-3AX0
MPN6AV6648-0AC11-3AX0
SIMATIC HMI SMART 700, SMART PANEL, TOUCH OPERATION, 7" WIDESCREEN TFT DISPLAY, 256 COLORS, RS422/485 INTERFACE, WITH CE CERTIFICATE, CONFIGURATION FROM WINCC FLEXIBLE 2008 SP2 CHINA; CONTAINS OPEN SOURCE SW WHICH IS PROVIDED FREE OF CHARGE FOR DETAILS SEE CD
$275.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
How we verify every order →Specifications
Display
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 7 in |
| Display design | TFT |
| Number of display colors | 256 |
| Backlight MTBF (at 25 °C) | 40 000 h |
Communication & I/O
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes |
Mechanical
| Parameter | Value |
|---|---|
| Overall depth | 40.5 mm |
| Front panel height | 159 mm |
| Front panel width | 213 mm |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Relative humidity, operation, max. | 90 % |
Approvals
| Parameter | Value |
|---|---|
| Marine approval: ABS | No |
| Marine approval: GL | No |
| Marine approval: DNV | No |
| Marine approval: LRS | No |
| Marine approval: BV | No |
MPN
6AV6648-0AC11-3AX0
