Siemens 6AV6648-0BE11-3AX0
MPN6AV6648-0BE11-3AX0

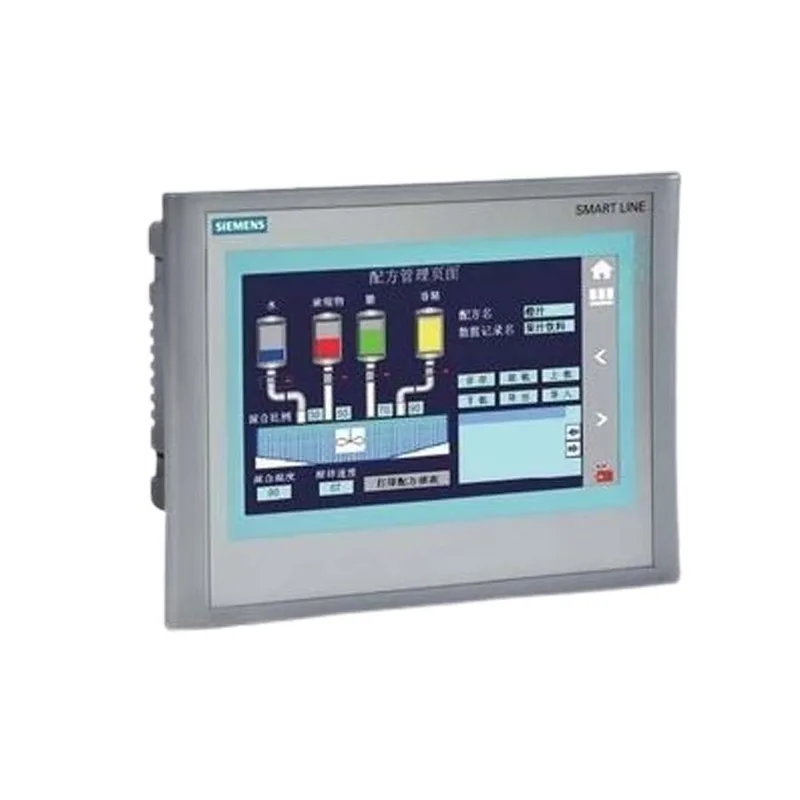

SIMATIC HMI SMART 1000 IE, SMART Panel, Touch operation, 10" widescreen TFT display, 65536 colors, RS422/485 interface, Ethernet (RJ45) interface, with CE certificate, configurable from WinCC flexible 2008 SP4 China; contains open-source software, which is provided free of charge see enclosed CD
$1,050.00 – $1,542.77Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Display
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 10.2 in |
| Display design | TFT |
| Touch screen | Yes |
| Number of display colors | 65 536 |
| Backlight MTBF (at 25 °C) | 40 000 h; Half brightness life time (25°C), Max. |
Communication & I/O
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes |
Electrical
| Parameter | Value |
|---|---|
| Current consumption (rated) | 0.6 A |
| Rated value (DC) | 24 V |
| Type of supply voltage | DC |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
Mechanical
| Parameter | Value |
|---|---|
| Portrait mounting possible | No |
| Overall depth | 48 mm |
| Front panel height | 222 mm |
| Front panel width | 288 mm |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Relative humidity, operation, max. | 90 % |
Approvals
| Parameter | Value |
|---|---|
| CE mark | Yes |
| Marine approval: ABS | No |
| Marine approval: GL | No |
| Marine approval: DNV | No |
| Marine approval: LRS | No |
| Marine approval: BV | No |
MPN
6AV6648-0BE11-3AX0
