Siemens 6AV6671-1CB00-0AX2
MPN6AV6671-1CB00-0AX2
Active

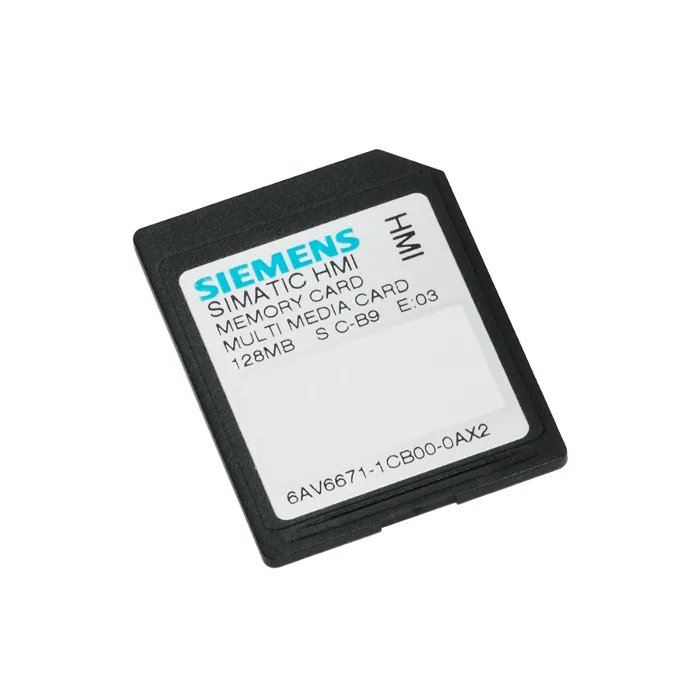

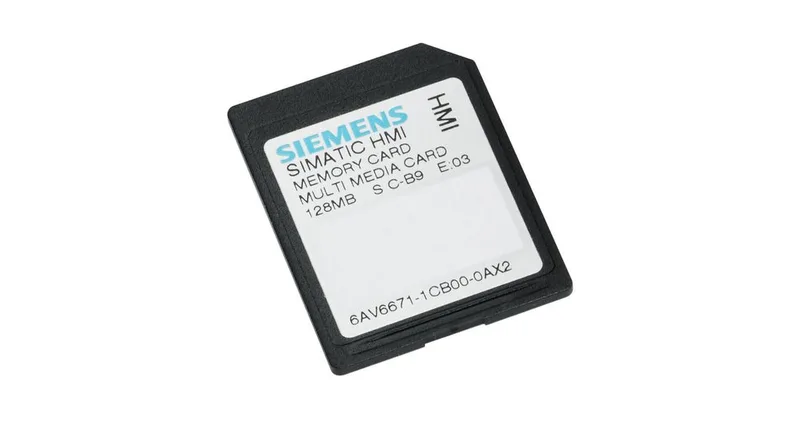

SIMATIC MM memory card 128 MB multi media card for OP 77B, TP/OP 177B, TP/OP 277, C7-635, MP 177, MP 277, MP 377, Mobile Panel 177, Mobile Panel 277 and all other HMI panels with MM slot Further information, Quantity and content: see technical data
$59.90 – $152.88Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Electrical
| Parameter | Value |
|---|---|
| Current consumption (rated) | 80 mA; Typical, maximum value |
| Rated value (DC) | 3.3 V; Max 3.6 V |
| Type of supply voltage | DC |
Mechanical
| Parameter | Value |
|---|---|
| Portrait mounting possible | Yes |
| Height | 32 mm |
| Width | 24 mm |
| Weight (without packaging) | 3 g |
Environmental
| Parameter | Value |
|---|---|
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 % |
Approvals
| Parameter | Value |
|---|---|
| CE mark | Yes |
| ATEX Zone 2 | Yes; Always comply with the operating instructions of the target device. |
| Marine approval: ABS | Yes; Always comply with the operating instructions of the target device. |
| Marine approval: GL | Yes; Always comply with the operating instructions of the target device. |
| Marine approval: DNV | Yes; Always comply with the operating instructions of the target device. |
| Marine approval: LRS | Yes; Always comply with the operating instructions of the target device. |
| Marine approval: BV | Yes; Always comply with the operating instructions of the target device. |
MPN
6AV6671-1CB00-0AX2
