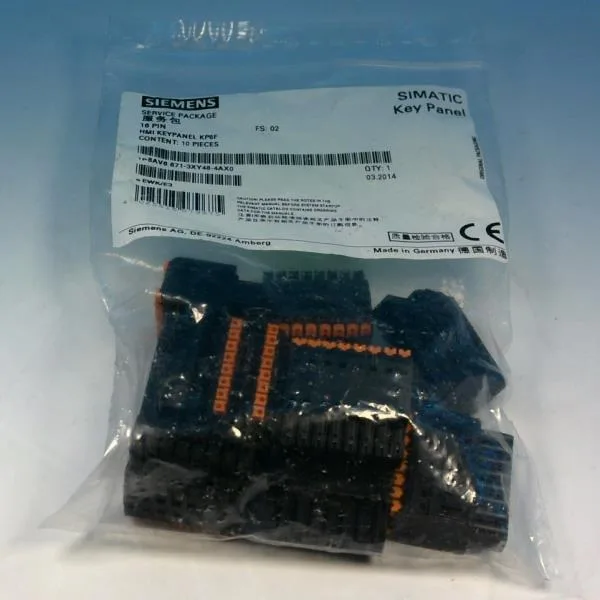

Siemens 6AV6671-3XY48-4AX0
MPN6AV6671-3XY48-4AX0
Active

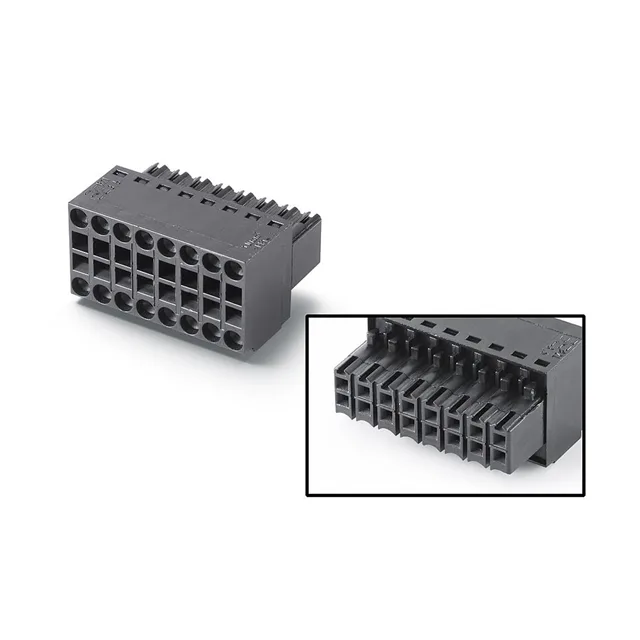

16-pin connector, female 16-pin connector, female 180°, max.: 1.5 mm2 Further information, Quantity and content: see technical data
$61.72 – $138.46Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Current consumption (rated) | 9 A; Typical, maximum value |
| Rated value (DC) | 24 V |
| Parameter | Value |
|---|---|
| Mounting type | Conductor cross-section 0.14 to 1.5 mm² |
| Height | 15.2 mm |
| Width | 28 mm; 16-pin connector |
| Parameter | Value |
|---|---|
| Max. | 70 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 80 % |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | Yes; cURus |
| ATEX Zone 2 | Yes; Device-dependent, see operating instructions |
| Marine approval: ABS | Yes; Always comply with the operating instructions of the target device. |
| Marine approval: GL | Yes; Always comply with the operating instructions of the target device. |
| Marine approval: DNV | Yes; Always comply with the operating instructions of the target device. |
| Marine approval: LRS | Yes; Always comply with the operating instructions of the target device. |
| Marine approval: BV | Yes; Always comply with the operating instructions of the target device. |
MPN
6AV6671-3XY48-4AX0
