Siemens 6AV7485-6BE00-0AA0
MPN6AV7485-6BE00-0AA0
Active

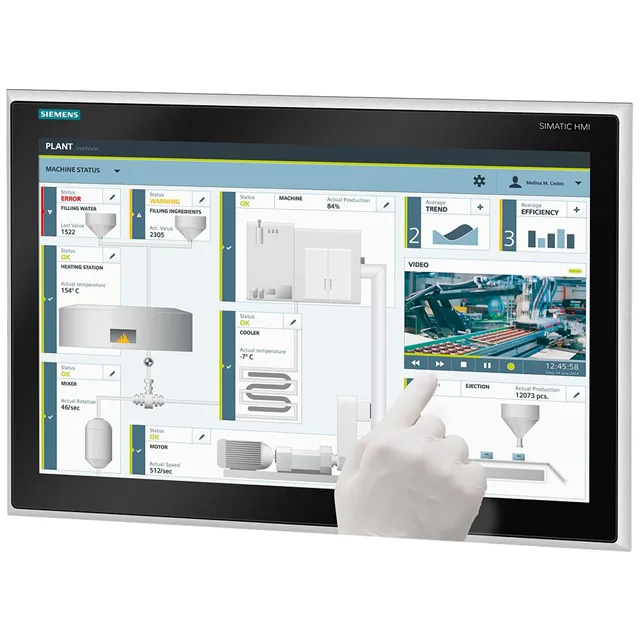

SIMATIC IFP2200 INOX FLAT PANEL 22" DISPLAY (16:9), Multitouch, Stainless steel front, 1920 X 1080 Pixel, For 24V DC, Displayport Interface, Ethernet Interface, Incl. DP/USB-cable 1,8 M
$3,622.88Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 21.5 in |
| Display design | TFT widescreen display, LED backlighting |
| Touch screen | Yes; Projective-capacitive |
| Number of display colors | 16 777 216; 24 bit |
| Backlight MTBF (at 25 °C) | 50 000 h; At 25°C |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Type of supply voltage | DC |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Parameter | Value |
|---|---|
| Mounting cutout height | 315 mm; Tolerance: +1 mm |
| Mounting cutout width | 513 mm; Tolerance: +1 mm |
| Overall depth | 62.5 mm |
| Front panel height | 345 mm |
| Front panel width | 544 mm |
| Weight (without packaging) | 8 kg |
| Parameter | Value |
|---|---|
| Ingress protection, front | IP66 / IPx6K and IP69 / IPx9K |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | Yes |
| RCM (formerly C-TICK) | Yes |
| ATEX Zone 2 | No; Available soon |
| Marine approval: ABS | No |
| Marine approval: GL | No |
| Marine approval: DNV | No |
| Marine approval: LRS | No |
| Marine approval: BV | No |
MPN
6AV7485-6BE00-0AA0
