Siemens 6AV7674-1MA00-0AA0
MPN6AV7674-1MA00-0AA0
Active

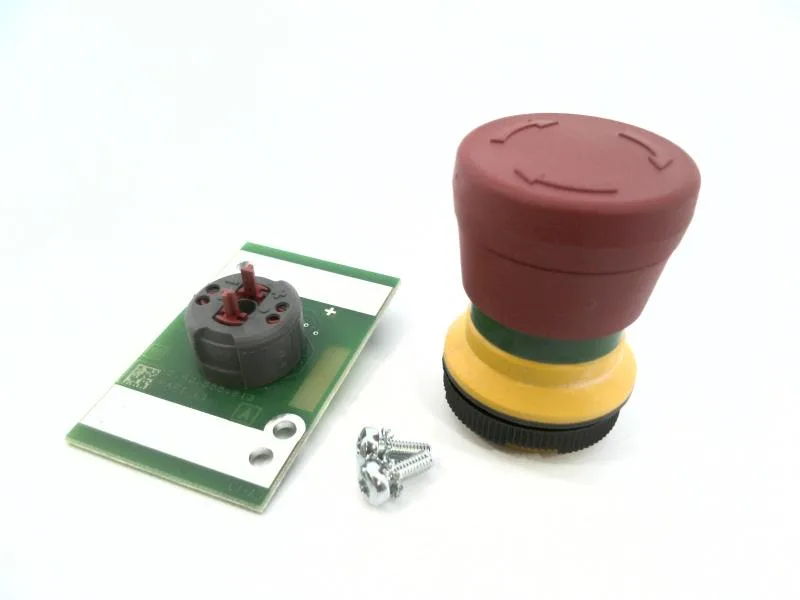

EMERGENCY STOP mushroom pushbuttons for extension units, 22mm, round, red, plastic, latching, Rotate-to-unlatch, without inscription, 2 NC contacts, (incl. printed-circuit board, contact module)
$38.10Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Current consumption (rated) | 100 mA |
| Rated value (DC) | 24 V |
| Parameter | Value |
|---|---|
| Front panel height | 33.2 mm |
| Mounting type | Threaded ring |
| Weight (without packaging) | 50 g |
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 (on front) to EN60529 and NEMA4 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 % |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | Yes; Only in combination with Extension Unit |
| RCM (formerly C-TICK) | Yes; Only in combination with Extension Unit |
MPN
6AV7674-1MA00-0AA0
