Siemens 6AV7674-1MG00-0AA0 — HMI Operator Interfaces

Siemens 6AV7674-1MG00-0AA0

MPN6AV7674-1MG00-0AA0
Active

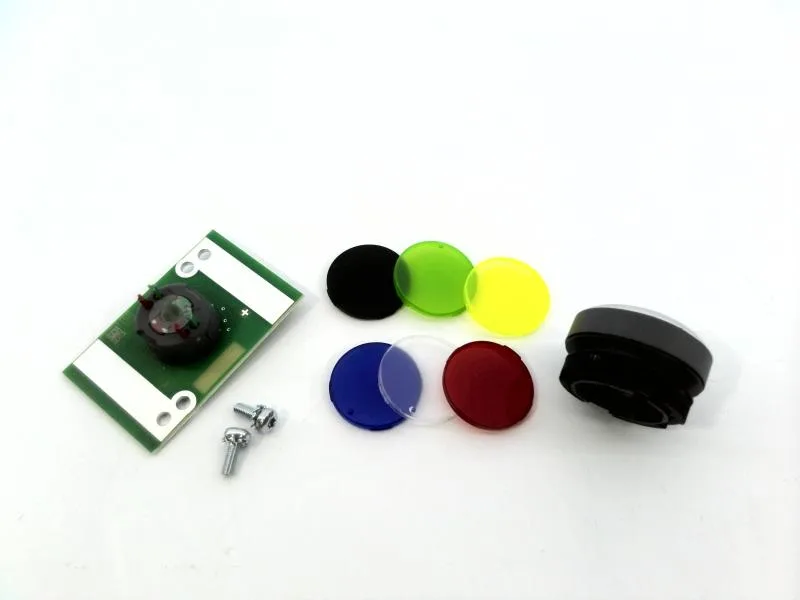

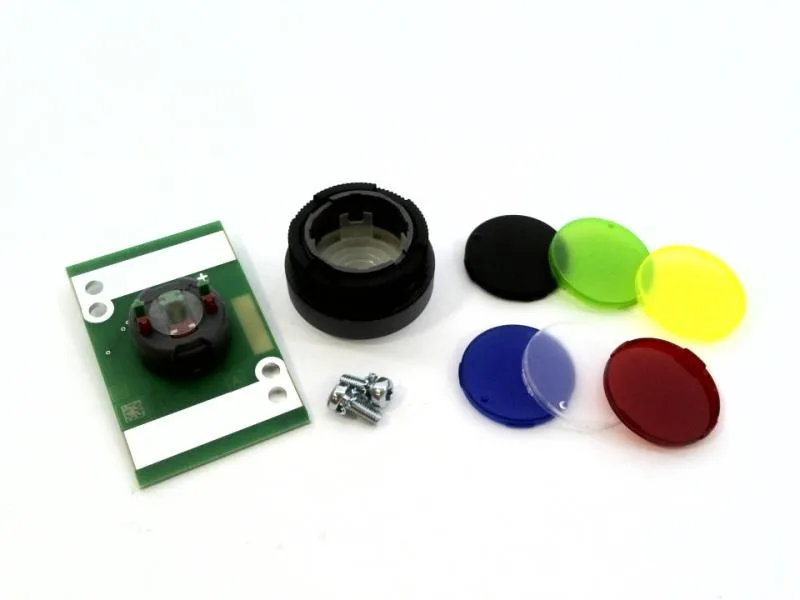

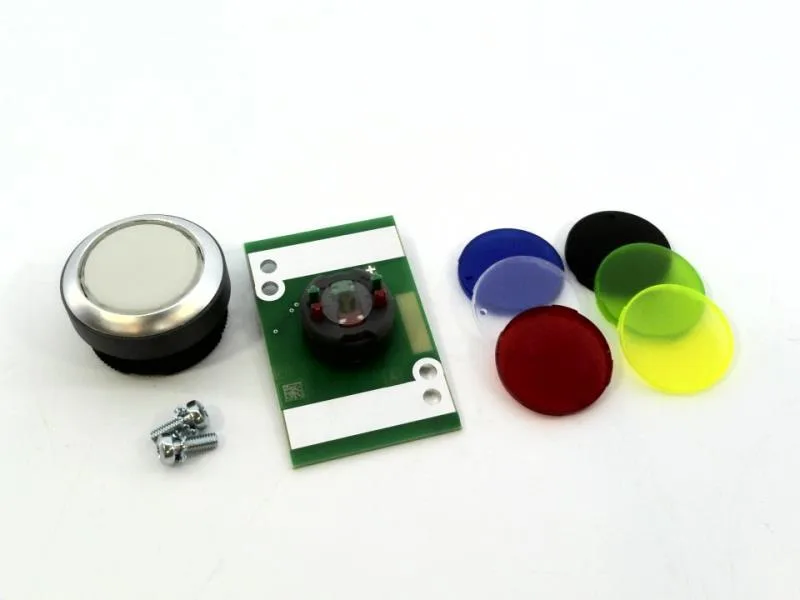

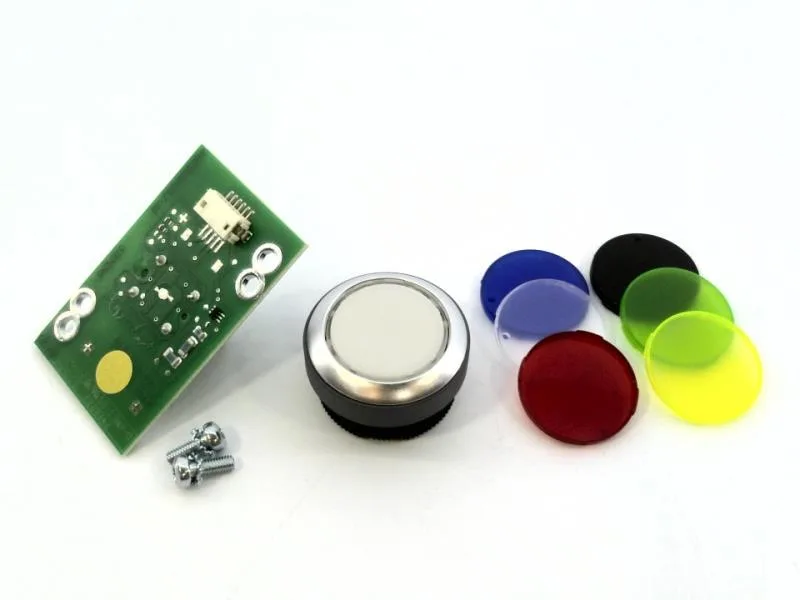

illuminated push-button for Extension Units, 22 mm, round, plastic, momentary contact type with integrated white LED, with 6 color filters(colorless, red, yellow, green, blue, black), 1 NO contact and 1 NC contact, without inscription (including printed-circuit board and contact module)

$33.02Ref. price · indicative, final on quote
Siemens 6AV7674-1MG00-0AA0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6AV7674-1MG00-0AA0 — Electrical
ParameterValue
Current consumption (rated)100 mA
Rated value (DC)24 V
6AV7674-1MG00-0AA0 — Mechanical
ParameterValue
Front panel height9.85 mm
Mounting typeThreaded ring
Weight (without packaging)50 g
6AV7674-1MG00-0AA0 — Environmental
ParameterValue
Ingress protection, frontIP65 (on front) to EN60529 and NEMA4
Max.60 °C
Min.-20 °C
Relative humidity, operation, max.90 %
6AV7674-1MG00-0AA0 — Approvals
ParameterValue
CE markYes
cULus listedYes; Only in combination with Extension Unit
RCM (formerly C-TICK)Yes; Only in combination with Extension Unit
MPN
6AV7674-1MG00-0AA0
