Siemens 6AV7835-0BA10-1CC0
MPN6AV7835-0BA10-1CC0

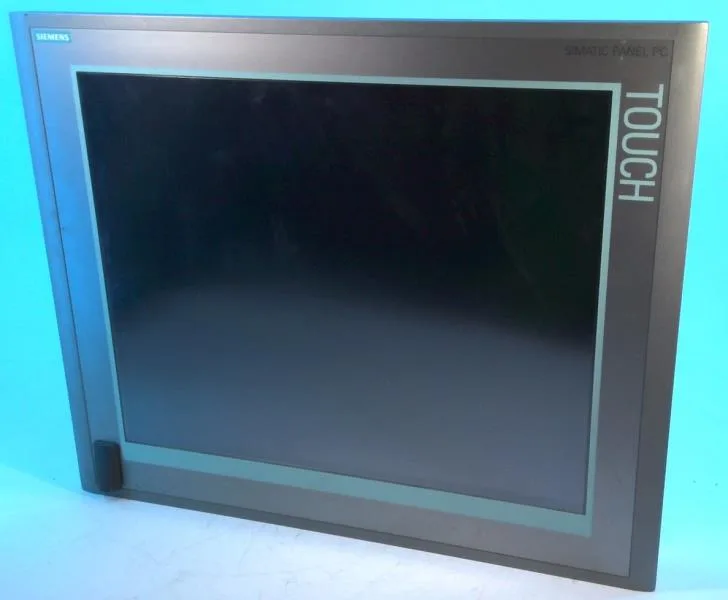

***NO LONGER AVAILABLE*** SIMATIC PANEL PC 577B 19" TOUCH; 1280X1024; WINDOWS XP PROF MUI; AC 110/230V NAMUR; CEL M 440, 1,86 GHZ, 1MB L2; 1 GB RAM DDR2; 160GB SATA HDD 3,5"; DVD+/-R+/-RW; INTERFACES: 2X PCI, 2X ETHERNET 1GBIT/S, 4X USB 2.0 500MA, 1X FRONT-USB 2.0 500MA, 1X SERIAL (COM1) POWER CORD EU AND US INCLUDED
$3,382.14Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 19 in |
| Display design | TFT |
| Touch screen | Yes |
| Backlight MTBF (at 25 °C) | 50 000 h |
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | No |
| Parameter | Value |
|---|---|
| Front panel height | 310 mm |
| Front panel width | 483 mm |
| Parameter | Value |
|---|---|
| Rack mounting | No |
| Accessory components | Touch cover foils, fixing elements for screw mounting at the front |
| In full configuration | 163 W max. (17.5 W included per slot) |
| Number of function keys | 0 |
| Additional mounting depth (Optical drive) | 21 mm |
MPN
6AV7835-0BA10-1CC0
