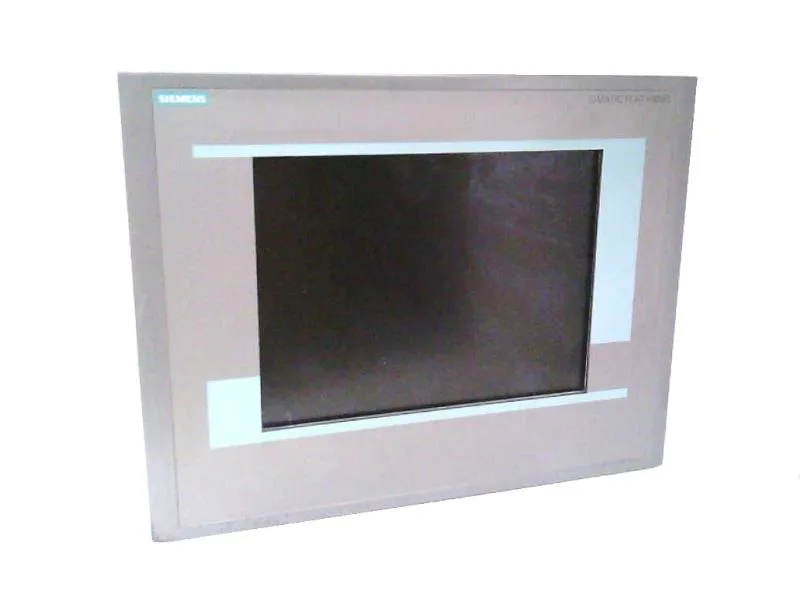

Siemens 6AV7861-1AB00-0AA0 Flat Panel
MPN6AV7861-1AB00-0AA0
SIMATIC FLAT PANEL FP77-12 12 INCH TFT- DISPLAY WITH 800X600 PIXEL RESOLUTION 24V DC AND 110/220V AC VGA, DVI-D INTERFACE INCL. VGA- CABLE 1,8M
$4,820.83Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 12 in |
| Number of display colors | 262 000; 262k |
| Parameter | Value |
|---|---|
| Type of supply voltage | AC |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Parameter | Value |
|---|---|
| Mounting cutout height | 290 mm |
| Mounting cutout width | 368 mm |
| Overall depth | 51 mm |
| Parameter | Value |
|---|---|
| Marine approval: ABS | Yes |
| Marine approval: GL | Yes |
| Marine approval: DNV | Yes |
| Marine approval: LRS | Yes |
| Marine approval: BV | Yes |
MPN
6AV7861-1AB00-0AA0
