Siemens 6AV7861-3AB00-1AA0
MPN6AV7861-3AB00-1AA0

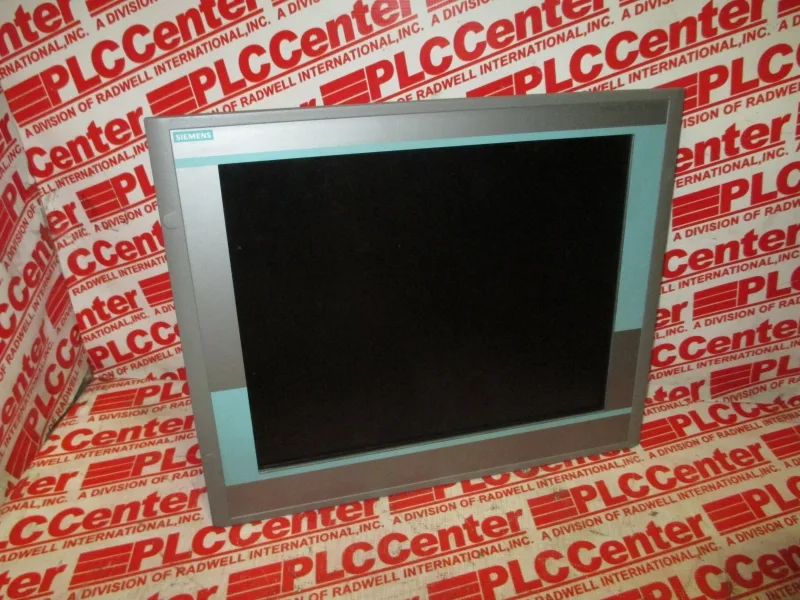

***Spare part*** SIMATIC Flat Panel 19 19-inch TFT screen with 1280x 1024 pixels resolution for 24 V DC and 120/240 V AC VGA, DVI-D interface, incl. VGA cable 1.8 m
$1,408.43Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Display
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 19 in |
| Display design | TFT |
| Touch screen | No |
| Number of display colors | 16 000 000; 16.7 million |
Electrical
| Parameter | Value |
|---|---|
| Type of supply voltage | AC/DC |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
Mechanical
| Parameter | Value |
|---|---|
| Mounting cutout height | 380 mm |
| Mounting cutout width | 450 mm |
| Overall depth | 57 mm |
| Front panel height | 400 mm |
| Front panel width | 483 mm |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 45 °C |
| Min. | 0 °C |
Approvals
| Parameter | Value |
|---|---|
| Marine approval: ABS | Yes; Optional |
| Marine approval: GL | Yes; Optional |
| Marine approval: DNV | Yes; Optional |
| Marine approval: LRS | Yes; Optional |
| Marine approval: BV | Yes; Optional |
MPN
6AV7861-3AB00-1AA0
