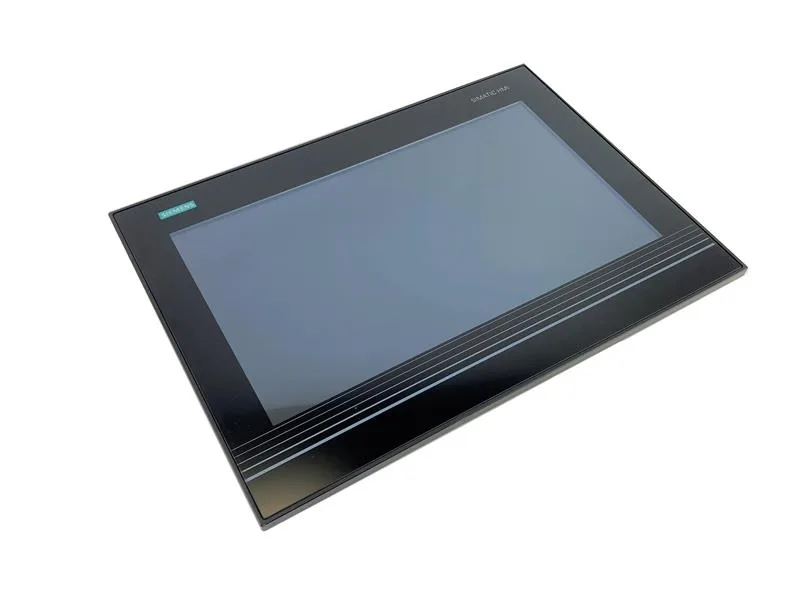

Siemens 6AV7863-2MA00-0SA0
MPN6AV7863-2MA00-0SA0
*** spare part *** SIMATIC IFP1500 Flat Panel 15" display (16: 9), multi-touch, Standard up to 5 m, 1366x 768 pixels, for 24 V DC, display port/DVI interface incl. DVI/USB cable 1.8 m marine approval
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 15.6 in; 15" |
| Display design | TFT widescreen display, LED backlighting |
| Touch screen | Yes; Projective-capacitive |
| Number of display colors | 16 777 216 |
| Backlight MTBF (at 25 °C) | 70 000 h; At 25°C |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Type of supply voltage | DC |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Parameter | Value |
|---|---|
| Mounting cutout height | 279 mm; Tolerance: +1 mm |
| Mounting cutout width | 398 mm; Tolerance: +1 mm |
| Overall depth | 62.5 mm |
| Front panel height | 298 mm |
| Front panel width | 416.5 mm |
| Weight (without packaging) | 4.2 kg |
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 95 %; no condensation |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | Yes; Corresponds to UL 508 |
| RCM (formerly C-TICK) | Yes |
| ATEX Zone 2 | Yes |
| Marine approval: ABS | Yes |
| Marine approval: GL | Yes |
| Marine approval: DNV | Yes |
| Marine approval: LRS | Yes |
| Marine approval: BV | Yes |
MPN
6AV7863-2MA00-0SA0
