Siemens 6AV7863-3AB10-0AA0
MPN6AV7863-3AB10-0AA0
Active

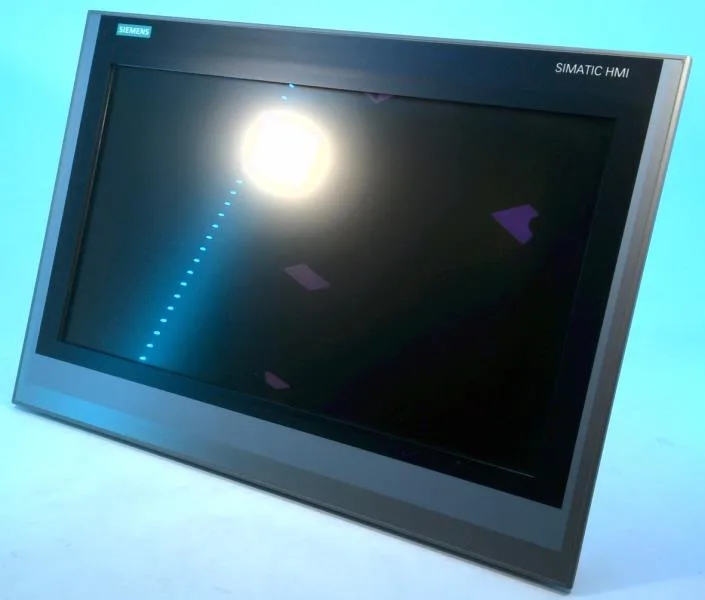

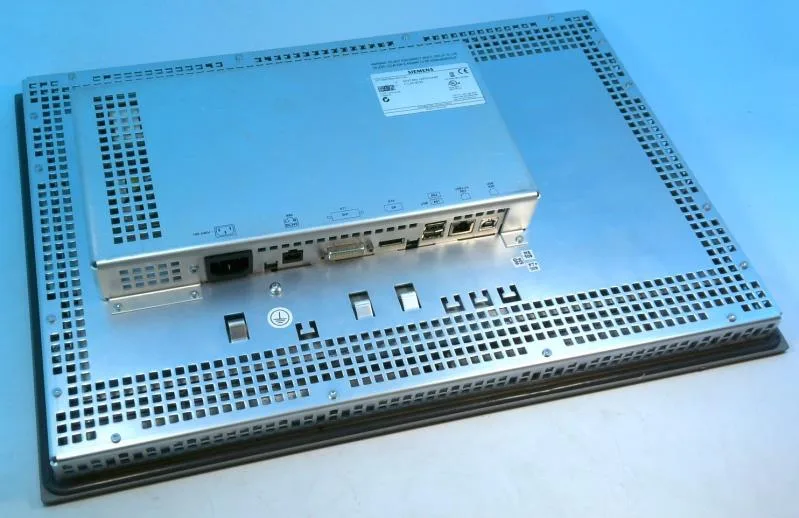

*** spare part *** SIMATIC IFP1900 flat panel 19" display (16: 9), without touch, display only, extended version up to 30 m, 1366x768 pixels, for 24 V DC and 100-240 V AC, DisplayPort/DVI interface incl. DVI/USB cable 1.8 m
$1,052.83 – $2,125.75Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 18.5 in; 19" |
| Display design | TFT widescreen display, LED backlighting |
| Touch screen | No |
| Number of display colors | 16 777 216; 24 bit |
| Backlight MTBF (at 25 °C) | 50 000 h; At 25°C |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Type of supply voltage | AC/DC |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Parameter | Value |
|---|---|
| Mounting cutout height | 319 mm; Tolerance: +1 mm |
| Mounting cutout width | 465 mm; Tolerance: +1 mm |
| Overall depth | 62.5 mm |
| Front panel height | 337 mm |
| Front panel width | 483 mm |
| Weight (without packaging) | 5.5 kg |
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 95 %; no condensation |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | Yes; Corresponds to UL 508 |
| RCM (formerly C-TICK) | Yes |
MPN
6AV7863-3AB10-0AA0
