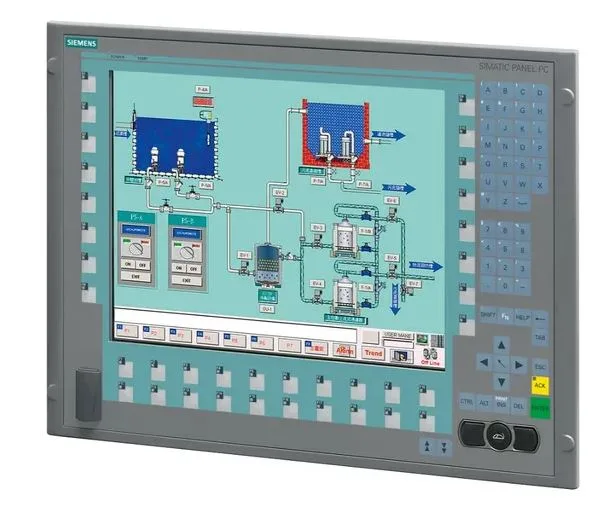

Siemens 6AV7871-0BC20-1AC0 Panel PC 677B
MPN6AV7871-0BC20-1AC0
***no longer available*** SIMATIC Panel PC 677B 2x10/100/1000 Mbit/s Ethernet; 4 x USB V2.0, 1x serial (COM1); 12" Key; 800 x 600; USB interface at the front 110/230 V AC power supply with NAMUR, power supply cable Europe; Core 2 Duo T5500, 1.66 GHz; 2 MB SLC, 2 x PCI; 1 GB DDR2 RAM; 160 GB SATA HDD 3.5", DVD +-R +-RW; PROFIBUS/MPI; Windows XP Prof. MUI (de,en,fr,es,it,ja,zh,ko)
$4,535.42Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Display
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 12 in |
| Display design | 12" TFT |
| Touch screen | No |
| Backlight MTBF (at 25 °C) | 50 000 h |
Electrical
| Parameter | Value |
|---|---|
| Type of supply voltage | 100/240 V AC (autorange) 50/60 Hz; optional 24 V DC |
Mechanical
| Parameter | Value |
|---|---|
| Overall depth | 105 mm |
| Front panel height | 400 mm |
| Front panel width | 310 mm |
| Height | 290 mm |
| Width | 450 mm |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 or IP66k (15" INOX) |
Approvals
| Parameter | Value |
|---|---|
| CE mark | Yes |
| Marine approval: ABS | No |
| Marine approval: GL | No |
| Marine approval: DNV | No |
| Marine approval: LRS | No |
| Marine approval: BV | No |
MPN
6AV7871-0BC20-1AC0
