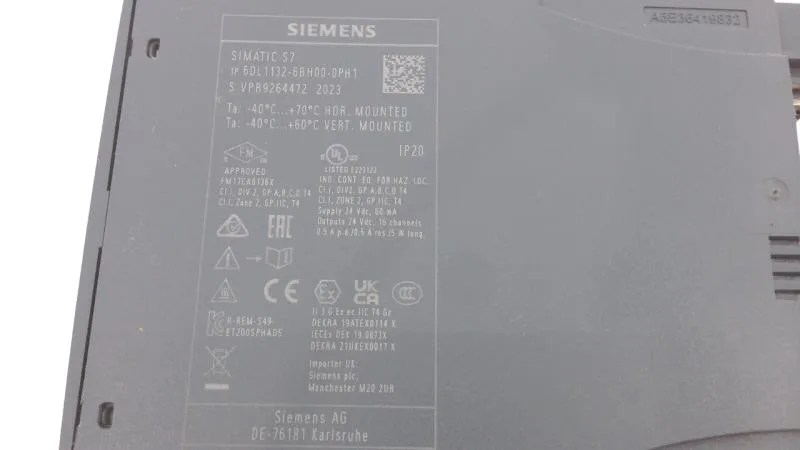

Siemens 6DL1132-6BH00-0PH1
MPN6DL1132-6BH00-0PH1
Active
SIMATIC ET 200SP HA, digital output module, DQ 16X24VDC/0,5A HA, suitable for terminal block, H1, M1, color code CC02, channel diagnostics
$762.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Outputs
| Parameter | Value |
|---|---|
| Digital outputs | 16 |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Output current, resistive load, max. | 100 Hz |
| Output current at signal "1" (rated) | 0.5 A |
| Total output current per module, max. | 8 A |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Residual current at signal "0", max. | 0.7 mA; Test current for wire-break diagnostics; this value is doubled in the case of IO redundancy |
| Output current up to 60 °C, max. | 3 A |
| Power dissipation (typ.) | 1.2 W; minimum - typ. specification not possible because load-dependent |
| Inductive shutdown voltage clamp | L+ -(37 to 41V) |
| Load resistance, upper limit | 12 kΩ |
| Load resistance, lower limit | 48 Ω |
| Isolation between channels | No |
| Isolation between channels and backplane bus | Yes |
| Isolation test voltage | 1 500 V DC/1 min, type test |
Protection & Diagnostics
| Parameter | Value |
|---|---|
| Short-circuit protection | Yes; Ensure sufficient low-resistance cable routing to the sensor/actuator in order to attain the response threshold. Depending on the cable cross-section used, there may be constraints regarding the usable length of cable. |
| Reverse polarity protection | Yes |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Short-circuit response threshold (typ.) | 0.7 A to 1.3 A (for IO redundancy up to max 2.6 A) |
| Wire-break detection | Yes; channel by channel |
| Redundant load control | Yes |
| Output can drive a digital input | Yes |
Performance
| Parameter | Value |
|---|---|
| Switching frequency, inductive load, max. | 2 Hz |
| Switching frequency, lamp load, max. | 10 Hz |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, horizontal mount, max. | 70 °C |
| Operating temperature, horizontal mount, min. | -40 °C |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Cable length, unshielded, max. | 600 m |
| Cable length, shielded, max. | 1 000 m |
| Width | 22.5 mm |
| Height | 115 mm |
| Depth | 138 mm |
| Weight (approx.) | 137 g |
MPN
6DL1132-6BH00-0PH1
