Siemens 6DL1132-6BL00-0PH1
MPN6DL1132-6BL00-0PH1
Active

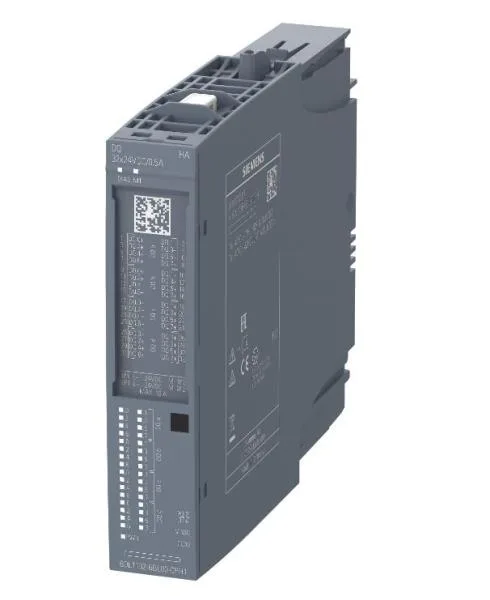

SIMATIC ET 200SP HA, digital output module, DQ 32X24VDC/0.5A HA, suitable for terminal block, H1, N0, color code CC00, channel diagnostics
$527.05Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Outputs
| Parameter | Value |
|---|---|
| Digital outputs | 32 |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Output current, resistive load, max. | 100 Hz |
| Output current at signal "1" (rated) | 0.5 A |
| Total output current per module, max. | 10 A |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Residual current at signal "0", max. | 0.1 mA |
| Output current up to 60 °C, max. | 10 A |
| Power dissipation (typ.) | 1.6 W; minimum - typ. specification not possible because load-dependent |
| Inductive shutdown voltage clamp | Typ. L+ (-53 V) |
| Load resistance, upper limit | 4 kΩ |
| Load resistance, lower limit | 48 Ω |
| Isolation between channels | No |
| Isolation between channels and backplane bus | Yes |
| Isolation test voltage | 1 500 V DC/1 min, type test |
Protection & Diagnostics
| Parameter | Value |
|---|---|
| Short-circuit protection | Yes; Clocked electronically |
| Reverse polarity protection | Yes |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
| Short-circuit response threshold (typ.) | 2 A; Overload / short circuit |
| Short-circuit detection | Yes |
| Wire-break detection | No |
| Redundant load control | Yes; only outputs of the same group |
| Output can drive a digital input | Yes |
Performance
| Parameter | Value |
|---|---|
| Switching frequency, inductive load, max. | 2 Hz |
| Switching frequency, lamp load, max. | 10 Hz |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, horizontal mount, max. | 70 °C |
| Operating temperature, horizontal mount, min. | -40 °C |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Cable length, unshielded, max. | 600 m |
| Cable length, shielded, max. | 1 000 m |
| Width | 22.5 mm |
| Height | 115 mm |
| Depth | 138 mm |
| Weight (approx.) | 150 g |
MPN
6DL1132-6BL00-0PH1
