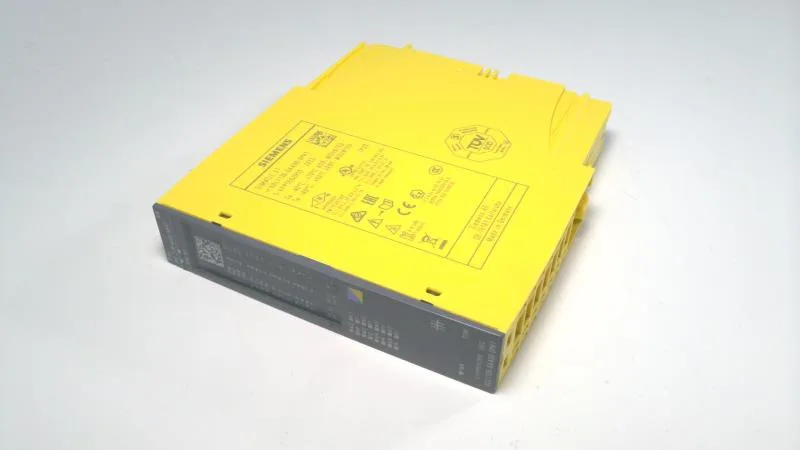

Siemens 6DL1136-6AA00-0PH1
MPN6DL1136-6AA00-0PH1
Active
SIMATIC ET 200SP HA, analog input module, safety-oriented, F-AI 8xI 2-wire/4-wire HART HA, 16-bit, 2-wire/4-wire, SIL3 (IEC 61508), up to PL e (ISO 13849-1), suitable for terminal block H1, F1, color code CC00, channel diagnostics
$1,446.53Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Input range: 0 to 20 mA | Yes |
| Input range: 4 to 20 mA | Yes |
| Current measurement: 2-wire transducer | Yes |
| Current measurement: 4-wire transducer | Yes |
| Input resistance (0 to 20 mA) | 150 Ω |
| Input resistance (4 to 20 mA) | 150 Ω |
| Permissible input current, max. (destruction limit) | 35 mA |
| Max. shielded signal cable length | 1 000 m; shielded, twisted pair |
| Parameter | Value |
|---|---|
| Resolution (bit incl. sign), max. | 16 bit |
| Measurement principle | Sigma Delta |
| Interference voltage suppression (at interference frequency) | 50 / 60 Hz |
| Common-mode interference suppression, min. | 80 dB |
| Common-mode voltage, max. | 35 V |
| Parameter | Value |
|---|---|
| Wire-break detection | Yes |
| Diagnostic alarm | Yes |
| Supply voltage monitoring | Yes |
| Parameter | Value |
|---|---|
| Isolation: channels to backplane bus | Yes |
| Isolation: between channels | No |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Power loss, typ. | 2.8 W |
| Reverse polarity protection | Yes |
| Parameter | Value |
|---|---|
| Operating temperature, horizontal mounting, max. | 70 °C |
| Operating temperature, horizontal mounting, min. | -40 °C |
| Operating temperature, vertical mounting, max. | 60 °C |
| Operating temperature, vertical mounting, min. | -40 °C |
| Parameter | Value |
|---|---|
| Width | 22.5 mm |
| Height | 115 mm |
| Depth | 138 mm |
| Weight, approx. | 220 g |
MPN
6DL1136-6AA00-0PH1
