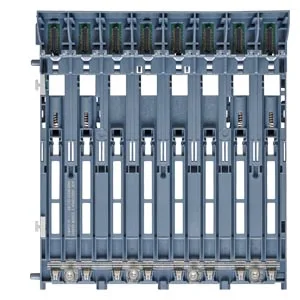

Siemens 6DL1193-6GC00-8NN0
MPN6DL1193-6GC00-8NN0
Active
SIMATIC ET 200SP HA, 8-fold carrier without Power Bus can only be operated with light-gray or black terminal blocks, for holding 8 I/O modules of the ET 200SP HA
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Isolation test voltage | 1 500 V DC/1 min, type test (between backplane bus and functional ground) |
| Parameter | Value |
|---|---|
| Height | 203 mm |
| Width | 187.5 mm; 180 mm when installed |
| Depth | 79 mm |
| Weight (approx.) | 270 g |
| Parameter | Value |
|---|---|
| Horizontal Installation, Max. | 70 °C |
| Parameter | Value |
|---|---|
| I&M data | Yes; Asset data |
| Number of slots | 8; for light gray and black terminal blocks |
| Support of potential groups | No; no Powerbus |
| Vertical installation, max. | 60 °C |
| Vertical installation, min. | -40 °C |
| Between the potential groups | Yes; 3 510 V AC/ 5 s, type test (between the power supply groups; due to isolating distance (increased isolation) for ÜK-III requirement of F technology) |
| Horizontal installation, min. | -40 °C |
| Between backplane bus and supply voltage | Yes; 4 200 V DC/1 min, type test |
MPN
6DL1193-6GC00-8NN0
