SIPART PS2 positioner 6DR51100NG000AA0 is the 2-wire 4-20 mA HART variant, not explosion protected, for single-acting actuators. Its Makrolon enclosure provides IP66 ingress protection according to IEC/EN 60529.

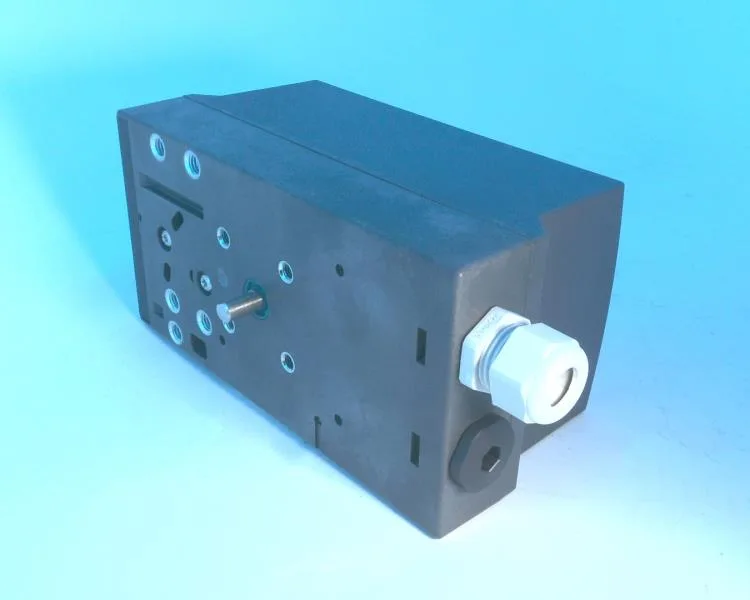

Siemens 6DR51100NG000AA0 SIPART PS2, 2-Wire HART, IP66
MPN6DR51100NG000AA0
Siemens SIPART PS2 Electropneumatic Positioner, 6DR5110-0NG00-0AA0, Version 1 = 2-wire (4 to 20 mA) With HART, not explosion protected, Single-acting, IP66/NEMA 4X, Makrolon enclosure.
$666.75 – $1,258.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Version | 1 = 2-wire (4 to 20 mA) With HART, not explosion protected |
| Material | Enclosure 6DR5..0 Makrolon : Glass-fiber reinforced polycarbonate (PC) |
| Enclosure | 0 = Makrolon |
| For actuator | 1 = Single-acting |
| Product type | SIPART PS2 Electropneumatic Positioner |
| Limit monitor | 0 = Installed, incl. 2nd cable gland Without |
| Option modules | 0 = Installed, incl. 2nd cable gland Without |
| Brief instructions | A = German/English |
| IP rating | IP66 according to IEC/EN 60529/NEMA 4X |
| Explosion protection | N = Without |
| Customer-specific design | 0 = Without |
| Mounted pressure gauge block | 0 = Without |
| Connection thread electrical (pneumatic) | G = M20x1.5/G¼ |
| Weight, positioner without option modules or accessories | 6DR5..0 Glass-fiber reinforced enclosure made from polycarbonate Approx. : 0.9 kg |
Product details
Frequently asked questions
What is the version of this positioner?
Version 1 = 2-wire (4 to 20 mA) With HART, not explosion protected.
What is the enclosure material?
Enclosure 6DR5..0 Makrolon: glass-fiber reinforced polycarbonate (PC).
MPN
6DR51100NG000AA0
