Siemens 6DR5120-0NM01-0AA0 — Flow & Proportional Control

Siemens 6DR5120-0NM01-0AA0 SIPART PS2, Single-Acting, HART

MPN6DR5120-0NM01-0AA0

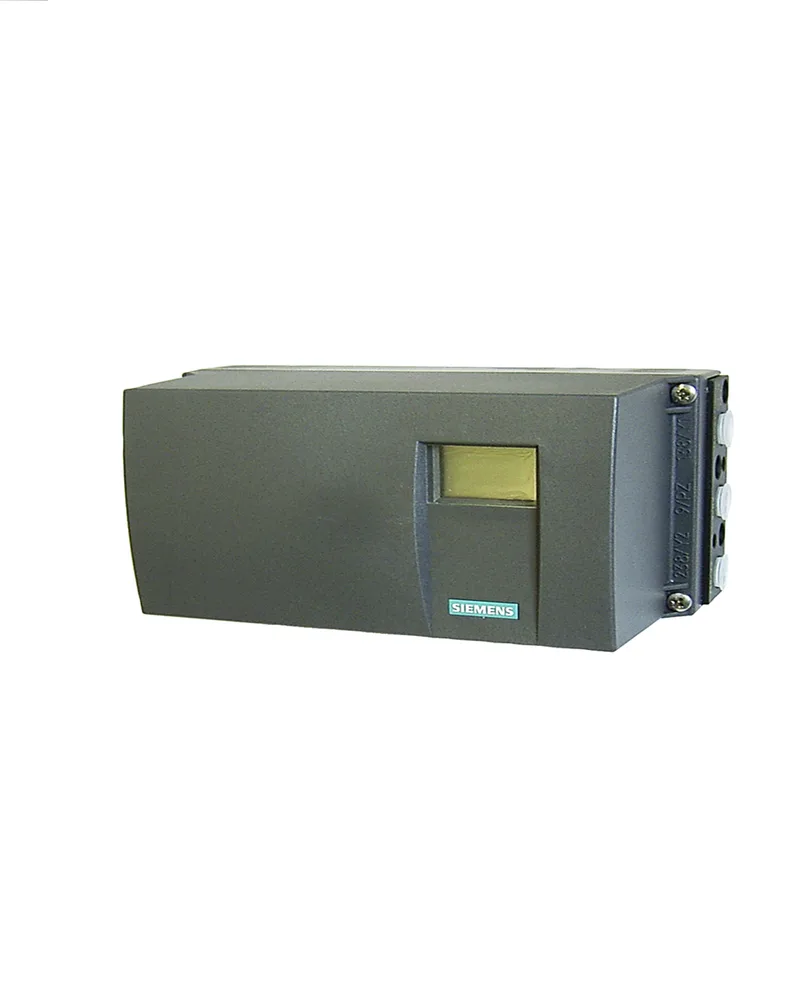

Siemens SIPART PS2 electropneumatic positioner, 6DR5120-0NM01-0AA0, single-acting, plastic housing, HART communication.

$1,324.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6DR5120-0NM01-0AA0 — Identification
ParameterValue
Product type / configurationElectropneumatic Positioners SIPART PS2
6DR5120-0NM01-0AA0 — Performance
ParameterValue
VersionSIPART PS2 2L with HART
6DR5120-0NM01-0AA0 — Approvals
ParameterValue
Explosion protectionNot Ex
6DR5120-0NM01-0AA0 — Other specifications
ParameterValue
ValveSingle-acting
HousingPlastic housing

Product details

The Siemens 6DR5120-0NM01-0AA0 is a SIPART PS2 2L electropneumatic positioner with HART, built for single-acting valve actuators and delivered in a plastic, non-explosion-proof housing. HART communication is supported on the SIPART PS2 2L. Single-acting means it drives one side of a spring-return cylinder or diaphragm actuator; the spring provides the return stroke. Ensure your actuator matches — a double-acting unit needs a different positioner variant.

Lead time is typically several weeks; plan spares accordingly.

Frequently asked questions

What valve type is this positioner for?

It is listed as single-acting, suitable for spring-return actuators where the positioner controls only one chamber.

What is the housing material?

Plastic housing — weight about 3 kg. This variant is not explosion-proof.

MPN
6DR5120-0NM01-0AA0
