Positioner quick-fit assessment

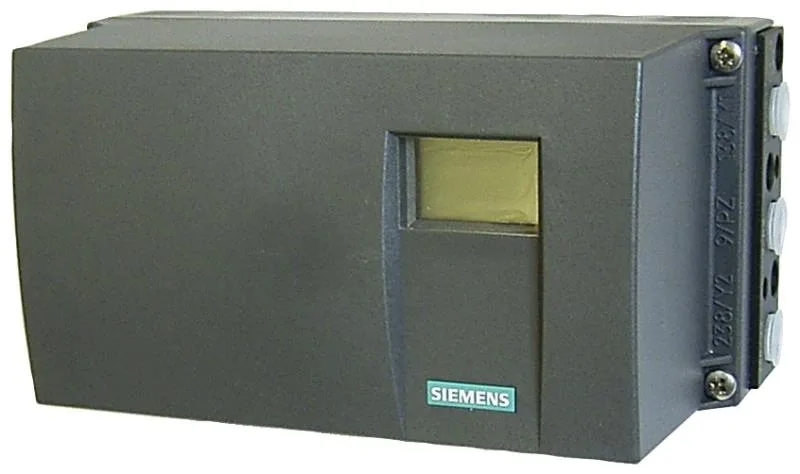

The 6DR51200NG000AA2: The non-contacting sensor eliminates wear and the plastic manometer with MPa/bar scale gives local pressure indication; enclosure is polycarbonate and the manometer block is aluminum, with G¼ pneumatic connections and M20x1.5 electrical entry. Protection class IP31. No integrated limit monitoring or option module on this variant; the fail-safe function doesn't apply — that's a single-acting feature. The standard version carries no explosion protection (Ex/nEx non-incendive excluded).
Active lifecycle, sourced to order. Specify this order code for a BOM line — the HART interface and double-acting configuration match the listed parameters exactly.
