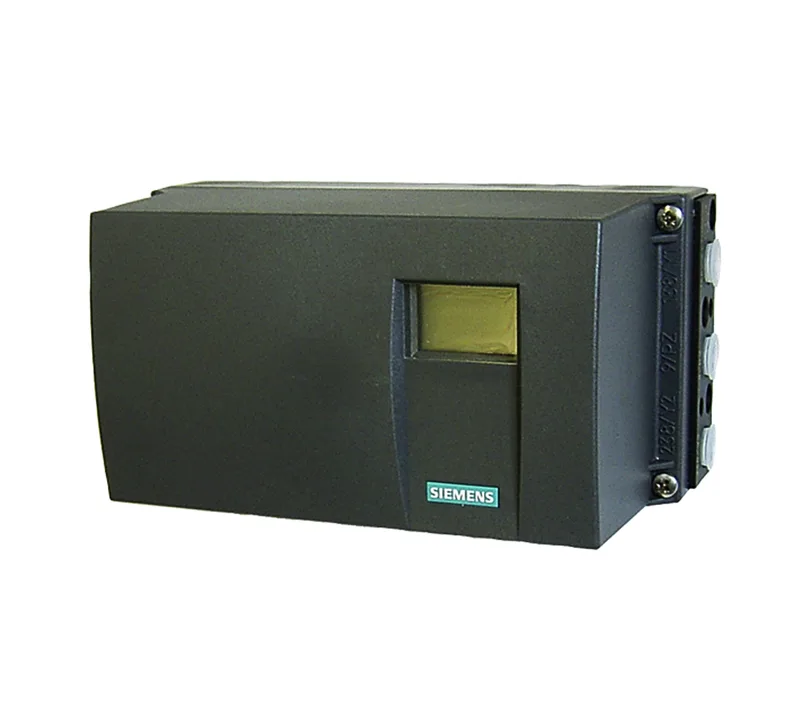

Siemens 6DR52200EN010AA4 SIPART PS2 Electropneumatic Positio

MPN6DR52200EN010AA4

Siemens SIPART PS2 Electropneumatic Positioner, 6DR5220-0EN01-0AA4, Version 1 = 2-wire (4 to 20 mA) With HART, not explosion protected, single-acting actuator, IP66 NEMA 4X, Makrolon enclosure.

$1,173.48 – $1,638.00Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6DR52200EN010AA4 specifications
Parameter	Value
Product type	SIPART PS2 Electropneumatic Positioner
Enclosure	0 = Makrolon
IP rating	IP66 according to IEC/EN 60529/NEMA 4X
Connection thread electrical (pneumatic)	N = ½-14 NPT / ¼-18 NPT
Material	Enclosure 6DR5..0 Makrolon : Glass-fiber reinforced polycarbonate (PC)
Shipping weight	2 Kg
Weight, positioner without option modules or accessories	6DR5..0 Glass-fiber reinforced enclosure made from polycarbonate Approx. 0.9 kg (1.98 lb)
Version	1 = 2-wire (4 to 20 mA) With HART, not explosion protected
For actuator	1 = Single-acting
Limit monitor	0 = Installed, incl. 2nd cable gland Without
Option modules	1 = Position feedback module for position feedback signal (4 ... 20 mA) (6DR4004-.J)
Brief instructions	A = German/English
Estimated lead time	10 - 12 weeks.
Explosion protection	N = Without
Customer-specific design	0 = Without
Mounted pressure gauge block	3 = Block made of aluminum, singleacting ¼-18 NPT, scaled in MPa and psi

Product details

The 6DR52200EN010AA4: It operates as a 2-wire 4 to 20 mA device with HART communication, intended for single-acting actuators, and carries an IP66 / NEMA 4X enclosure rating from the factory. The Makrolon glass-fiber reinforced polycarbonate enclosure provides corrosion resistance for industrial environments, and the unit includes a position feedback module (4 to 20 mA) as standard.
