Siemens 6ED1052-1CC00-0BA2 — PLCs (Programmable Logic Controllers)

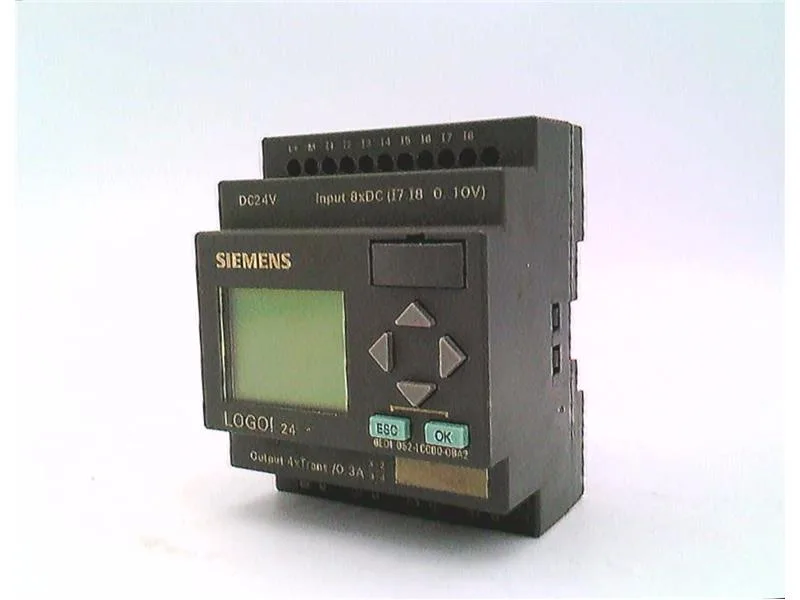

Siemens 6ED1052-1CC00-0BA2 LOGO! 24, 24V DC, 8 DI/4 DO, 2 AI

MPN6ED1052-1CC00-0BA2

Siemens LOGO! 24, logic module with display, 24V DC supply, 8 digital inputs (2 usable as 0-10V analog), 4 transistor outputs, DIN rail mount.

$376.50Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ED1052-1CC00-0BA2 — I/O
ParameterValue
Digital inputs8; of which 2 can be used in analog mode (0 to 10 V)
Digital outputs4
6ED1052-1CC00-0BA2 — Electrical
ParameterValue
Rated value (DC)24 V
Short-circuit protectionYes; Electronic
6ED1052-1CC00-0BA2 — Environmental
ParameterValue
Temperature, min.-20 °C
Temperature, max.70 °C
6ED1052-1CC00-0BA2 — Mechanical
ParameterValue
Width72 mm
Height90 mm
Depth55 mm

Product details

This is the Siemens 6ED1052-1CC00-0BA2 LOGO! 24 logic module — a DIN-rail mounted, pre-programmable controller with an integrated display and keypad. It runs on 24 V DC supply. The I/O count packs 8 digital inputs (two of those can be switched to analog 0-10 V mode) plus 2 dedicated analog inputs, and 4 transistor digital outputs rated for 0.3 A each at 55 °C and switching up to 10 Hz on resistive loads. Input thresholds are clearly defined: signal '0' below 5 V, signal '1' above 12 V. That gives noise immunity for dirty 24 V environments — 12 V as a '1' threshold leaves headroom above the typical 8 V no-man's-land. The wide operating temperature range of -20 °C to 70 °C makes it viable for unheated cabinets or outdoor enclosures — something the sibling LOGO! 24 units with relay outputs don't match. That alone can decide the fit for a cold-store or rooftop panel.

The module measures 72 mm wide and 90 mm high. Max power loss is 0.5 W; connection accepts 1.5 mm2 1-wire or 0.5 to 2.5 mm2 finely stranded with end sleeve.
