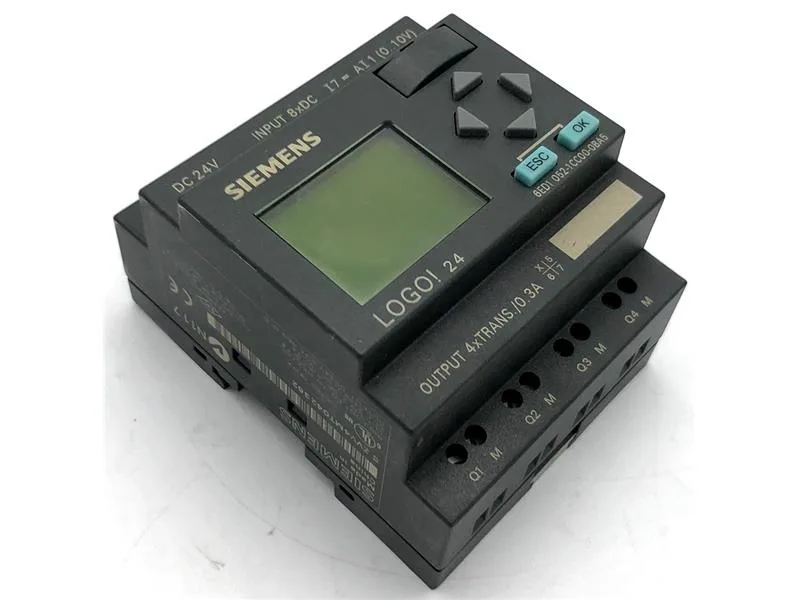

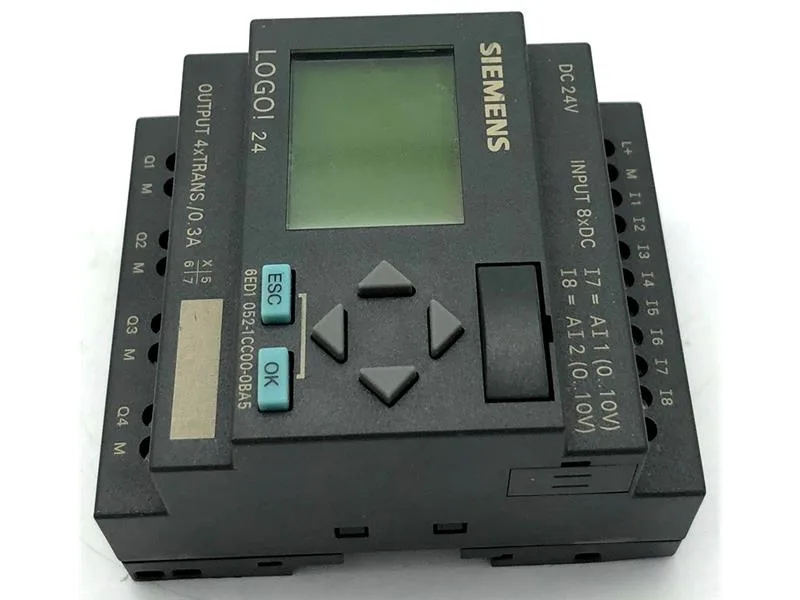

Siemens LOGO! 24, logic module, display, 8 DI (2 AI), 4 DO transistor 0.3 A, 24 V DC, 4 SU wide.
| Parameter | Value |
|---|---|
| Digital inputs | 8; of which 2 can be used in analog mode (0 to 10 V) |
| Digital outputs | 4; Transistor |
| Parameter | Value |
|---|---|
| Permissible range, lower limit (DC) | 20.4 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Short-circuit protection | Yes; electrical (1 A) |
| Parameter | Value |
|---|---|
| Temperature, min. | 0 °C |
| Temperature, max. | 55 °C |
| Parameter | Value |
|---|---|
| Width | 72 mm |
| Height | 90 mm |
| Depth | 55 mm |
The 6ED1052-1CC00-0BA5 mounts on 35 mm DIN rail, 4 spacing units wide (72 mm), depth 55 mm, height 90 mm. Approved for residential use (Class B) with CE, UL, CSA, FM, and Marine certifications. Supply voltage: 20.4–28.8 V DC. Includes a display for local status and programming.
Rated for 0 °C to 55 °C ambient.
Yes, both are 72 mm wide (4 SU), same DIN rail mounting, same height and depth. The only difference is output type: transistor vs relay. No rewiring of the base module is needed.
Alternative models and sibling configurations in the same Siemens series. For obsolete or discontinued parts, these models can serve as compatible replacements or functional alternatives for plant maintenance.
