What ships in the box

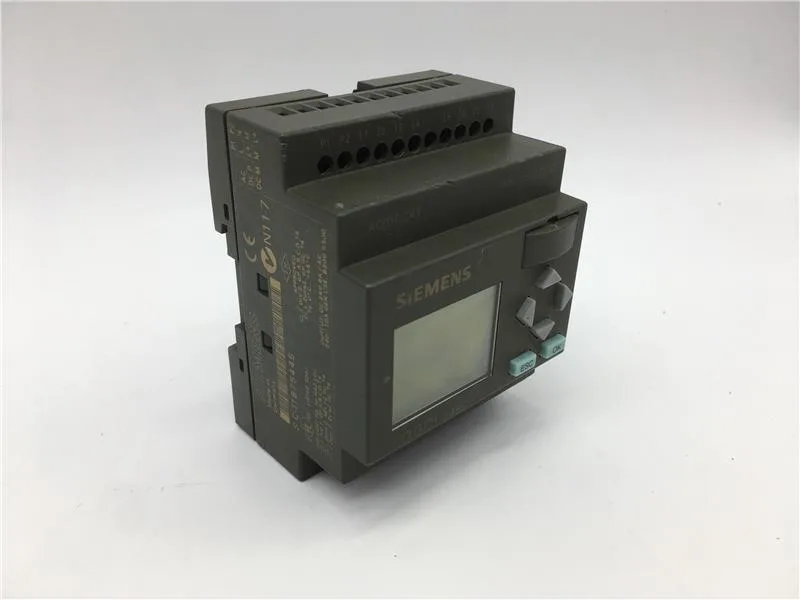

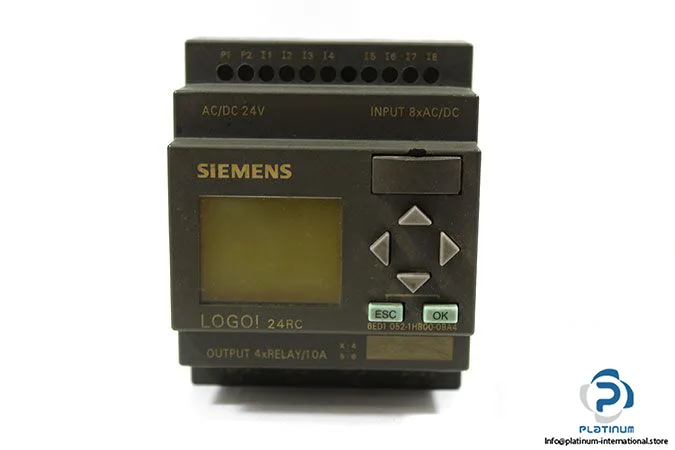

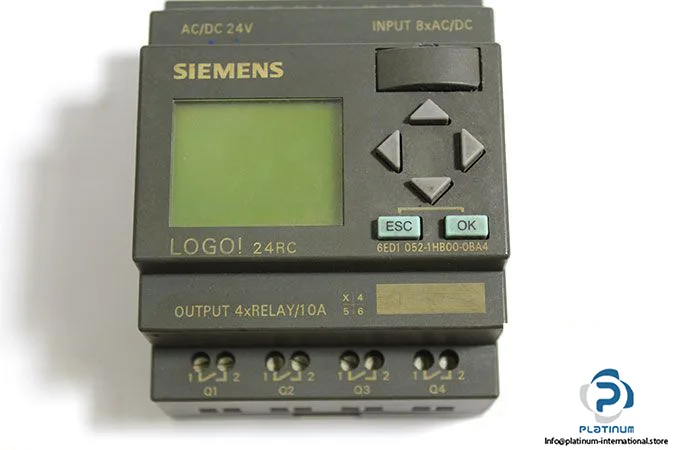

The Siemens 6ED1052-1HB00-0BA4 is a LOGO! 24RC logic module combining an integrated power supply (AC/DC 24 V), eight digital inputs, and four relay outputs in a single 90 x 72 x 55 mm DIN-rail housing, 4 spacing units wide. The kit includes the logic module with built-in display and six keys for on-site programming and parameterization, expandable to 130 blocks via LOGO! expansion modules. Relay outputs rated 10 A resistive / 3 A inductive per channel; the module requires external short-circuit protection per.
Active production and compliance documentation
Carries CE mark, UL approval, CSA approval, FM approval, and Marine approval. Rated limit class B for residential area emissions.
Not a drop-in for S7-200 or ET 200S output modules
Similarly, the 6ES7193-4CC30-0AA0 is an ET 200S multi-function module for PROFIBUS slave racks — not a functional peer for this LOGO! controller.
Mounting and environment checklist
Mounts on 35 mm DIN rail, 4 spacing units (72 mm) wide. Depth 55 mm — ensure clearance for cabling and cooling. Operating ambient 0 °C to 55 °C. Supply voltage AC or DC, permissible DC range 20.4 V to 28.8 V. Internal power reserve retains program for 80 h after supply loss. Eight digital inputs. Four relay outputs — with inductive load limit 3 A, resistive 10 A. External fusing required for output circuits.
