The Siemens 6ED1052-1HB00-0BA8 is a LOGO! 24RCE logic module with integrated display, powered by 24 V AC or DC (20.4–28.8 V DC permissible). It provides 8 digital inputs and 4 relay outputs rated at 10 A resistive / 3 A inductive. The memory holds 400 function blocks, and the module is modularly expandable via the LOGO! system bus. Ethernet with integrated web server and data logging are on board. Module carries UL, CSA, CE, FM, Marine, and VDE approvals; meets Class B emission limits for residential areas.

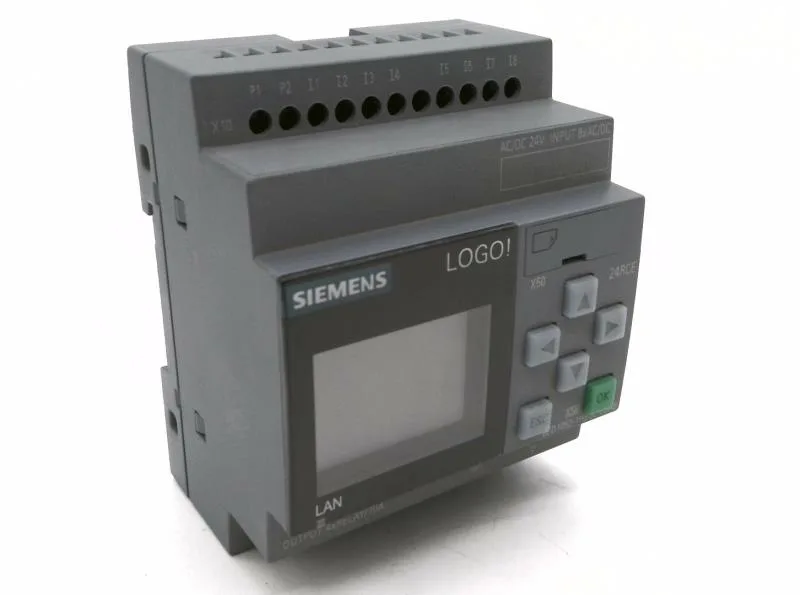

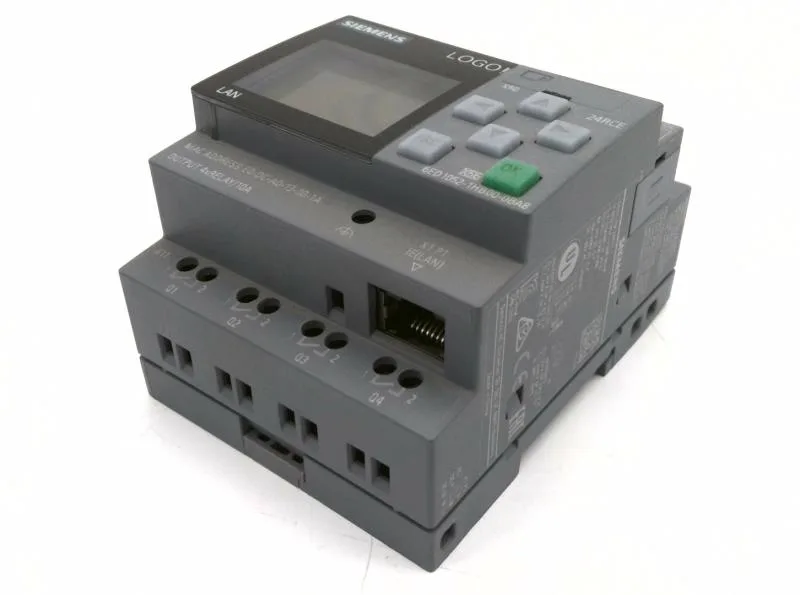

Siemens 6ED1052-1HB00-0BA8 LOGO! 24RCE logic module
MPN6ED1052-1HB00-0BA8
Siemens LOGO! 24RCE logic module, 6ED1052-1HB00-0BA8, 8 DI / 4 relay DO, 24 V AC/DC, display, Ethernet, 400 blocks memory.
$333.49Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Digital inputs | 8 |
| Digital outputs | 4; Relays |
| Parameter | Value |
|---|---|
| Permissible range, lower limit (DC) | 20.4 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Short-circuit protection | No; external fusing necessary |
| Parameter | Value |
|---|---|
| Temperature, min. | 0 °C; LOGO! 8 FS04 and higher: -20 °C |
| Temperature, max. | 55 °C |
| Parameter | Value |
|---|---|
| Width | 71.5 mm |
| Height | 90 mm |
| Depth | 60 mm |
Product details
Frequently asked questions
What is the maximum operating temperature?
The module is rated for a maximum ambient temperature of 55 °C. For LOGO! 8 FS04 and higher, the minimum temperature extends to -20 °C; otherwise minimum is 0 °C.
MPN
6ED1052-1HB00-0BA8
