24V AC/DC logic module with Ethernet and web server

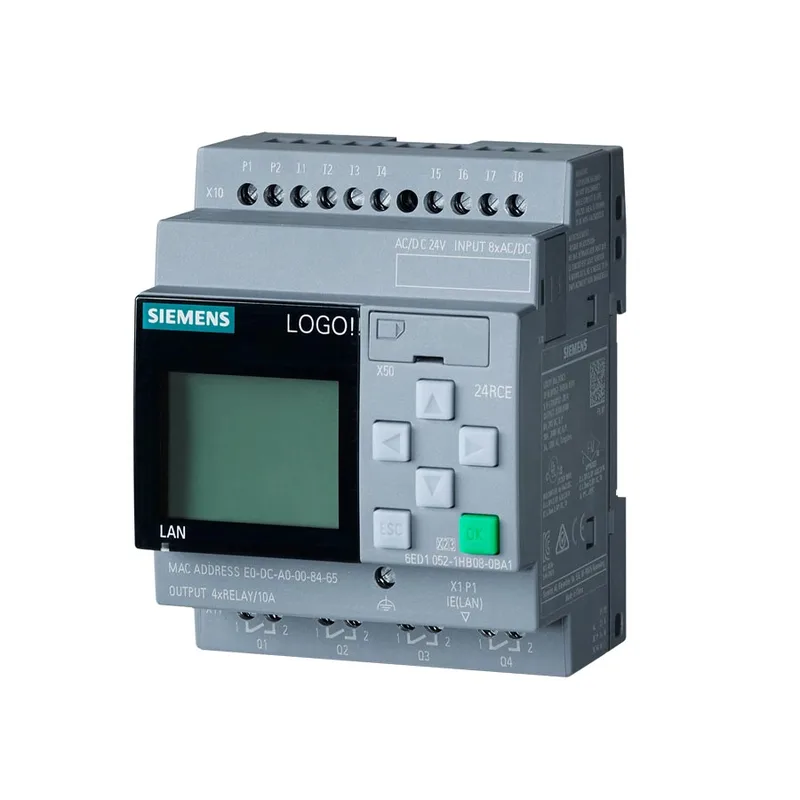

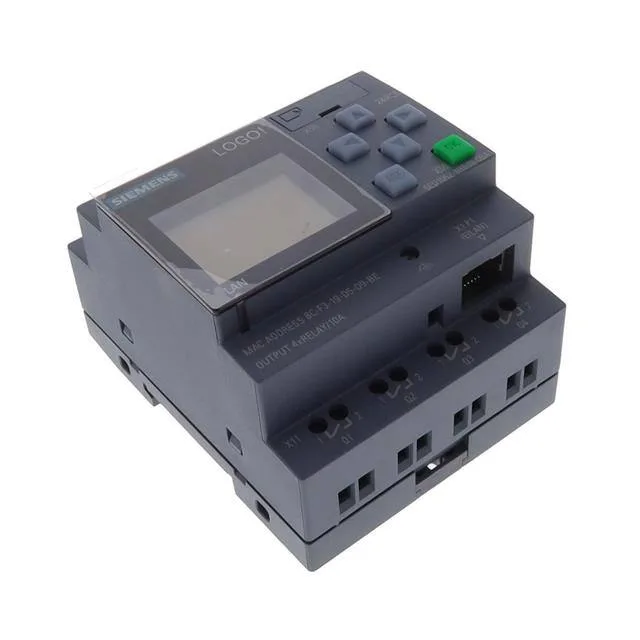

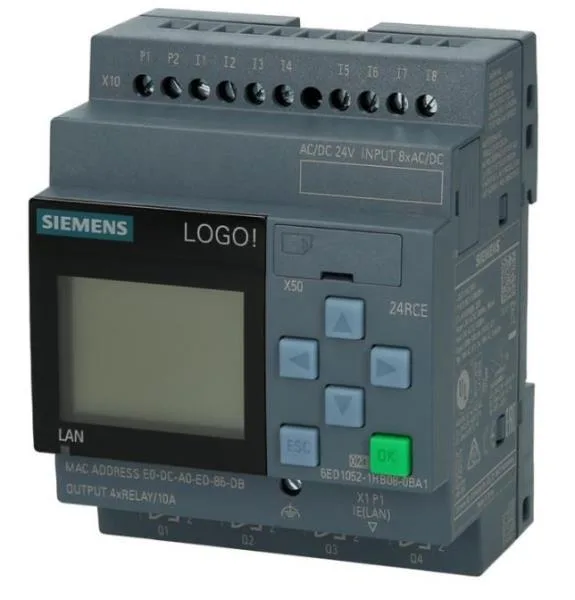

The 6ED1052-1HB08-0BA1 is the current LOGO! 24RCE baseline with 8 digital inputs and 4 relay outputs rated 3 A inductive/10 A resistive. Supply is 24 V AC or DC across 20.4–28.8 V DC (47–63 Hz AC), and it ships with a built-in web server, data logging, and user-defined web pages. Memory holds 400 function-specific blocks—enough for moderate sequence or alarm logic. The display on board means you can edit or monitor without a PC, though full programming uses LOGO! Soft Comfort V8.3 or higher.
Mounting and integration notes
Mounts on 35 mm DIN rail, 4 spacing units wide (71.5 mm × 90 mm × 60 mm). Power reserve 480 h; relay outputs 3 A inductive/10 A resistive; external fuse required; Ethernet and web server for remote monitoring.
