Siemens 6ED1052-1MD00-0BA2 — PLCs (Programmable Logic Controllers)

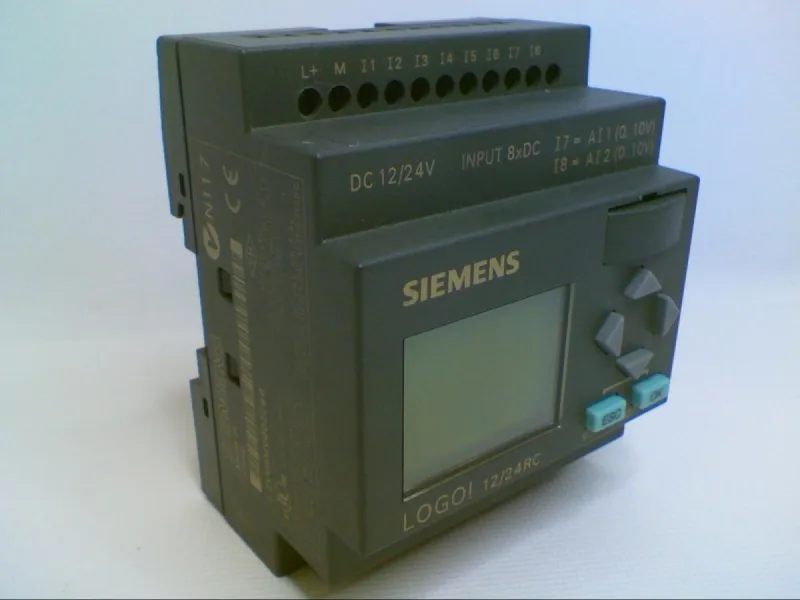

6ED1052-1MD00-0BA2 LOGO! 12/24 VDC Logic Module, 70 °C

MPN6ED1052-1MD00-0BA2

Siemens LOGO! 12/24RC logic module, 6ED1052-1MD00-0BA2, 8 DI / 2 AI / 4 DO relay, 12/24 VDC supply, −20 to 70 °C, 72 mm wide.

$530.68Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6ED1052-1MD00-0BA2 — I/O
ParameterValue
Digital inputs8; of which 2 can be used in analog mode (0 to 10 V)
Digital outputs4; Relays
6ED1052-1MD00-0BA2 — Electrical
ParameterValue
Rated value (DC)12 V; 12/24 V DC
Permissible range, lower limit (DC)20.4 V; 10.8 V DC with 12 V DC input voltage
Permissible range, upper limit (DC)28.8 V; 15.6 V DC at input voltage 12 V DC
Short-circuit protectionNo; external fusing necessary (max. 16 A)
6ED1052-1MD00-0BA2 — Environmental
ParameterValue
Temperature, min.-20 °C
Temperature, max.70 °C
6ED1052-1MD00-0BA2 — Mechanical
ParameterValue
Width72 mm
Height90 mm
Depth55 mm

Product details

Rated for the pit and the panel

This Siemens LOGO!—6ED1052-1MD00-0BA2—is the 12/24 VDC baseline module with a real temperature range: −20 °C to 70 °C. It shrugs off the swing from a frosty startup to a closed cabinet baking in summer. Relay outputs handle 10 A resistive or 3 A inductive, enough for pilot-duty contactors or solenoid valves you find in a dust-caked control panel. You get 8 digital inputs, two of which double as 0–10 V analog inputs. The rest are straight DI—no mixed-mode fuss. Twenty-four volt supply, but it also runs on 12 V if your site still uses that. Power draw stays under 1.6 W, so it won't cook itself inside a tight enclosure.

Connection block accepts 2x 1.5 mm2 1-wire or 1x 0.5 to 2.5 mm2 finely stranded with end sleeve.

Frequently asked questions

When sourcing this part, what is the closest functional second-source?

The closest functional alternative is 6ED1052-1MD00-0BA6. It has the same footprint and relay ratings but a narrower temperature range (0 °C to 55 °C vs. −20 °C to 70 °C) and four analog inputs instead of two.

What is the maximum ambient temperature rating?

The module is rated for a maximum ambient temperature of 70 °C.

What is the minimum ambient temperature rating?

The module is rated for a minimum ambient temperature of −20 °C.

Will this drop into a panel specified around 6ED1052-1MD00-0BA6 without rewiring?

Yes, the physical dimensions (72 mm wide, 90 mm tall, 55 mm deep) and terminal layout are identical. No re-drilling or rewiring needed—but check the analog input count: the BA6 has four 0–10 V inputs, this BA2 has two.
