What it is and what it does

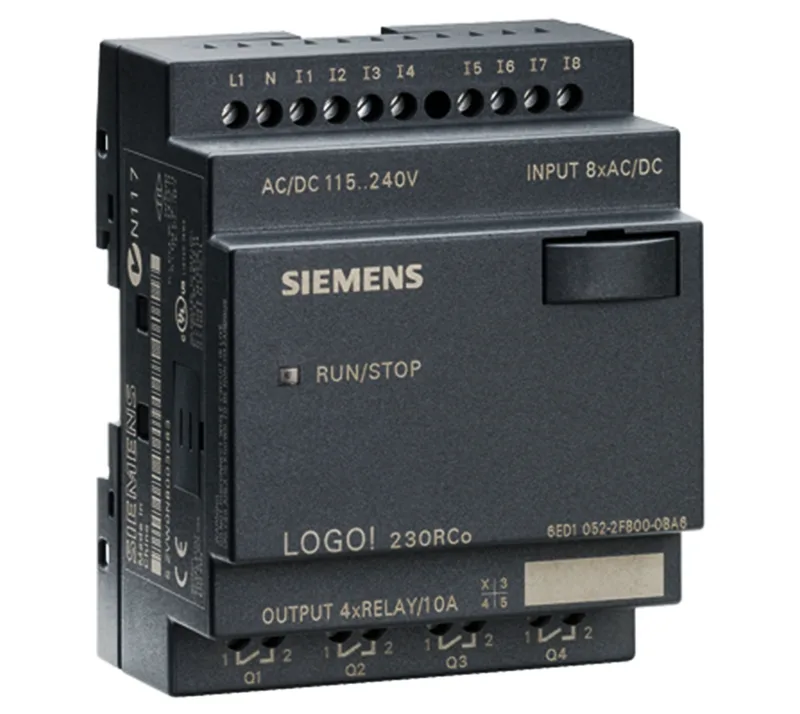

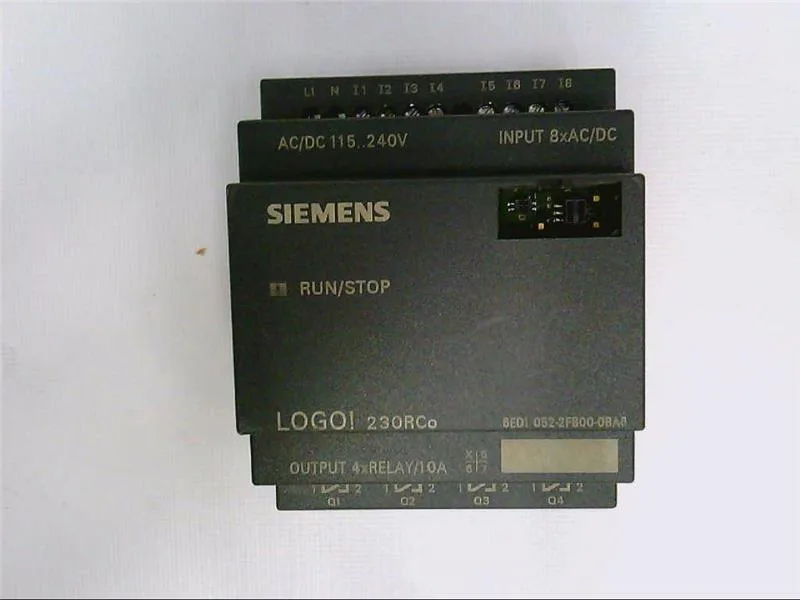

The Siemens 6ED1052-2FB00-0BA6 is a LOGO! 230RCO logic module — a compact controller with 8 digital inputs and 4 relay outputs, running on 230 V AC or DC supply. It's a current-production workhorse for standalone or modular automation tasks, expandable via the LOGO! bus. Output relays are rated for 10 A resistive load and 3 A with inductive load. That's real switching capacity for contactors, solenoids, or small motors — just remember short-circuit protection is external, no internal fusing here. Operating temperature range is 0 °C to 55 °C — fits typical control cabinet environments. The module mounts on a 35 mm DIN rail and takes up 4 spacing units.
Compliance and approvals
This LOGO! module carries CE, UL, CSA, FM, and marine approvals — suitable for industrial, commercial, and shipboard panels. It is limit class B for residential areas.
Sourcing and integration notes
Hardwired for AC/DC supply and delivers an 80-hour power reserve for program and data retention during outages. DIN rail mount, 72 mm wide, 90 mm tall, 55 mm deep. Panel cutout planning: leaves room for expansion modules alongside.
